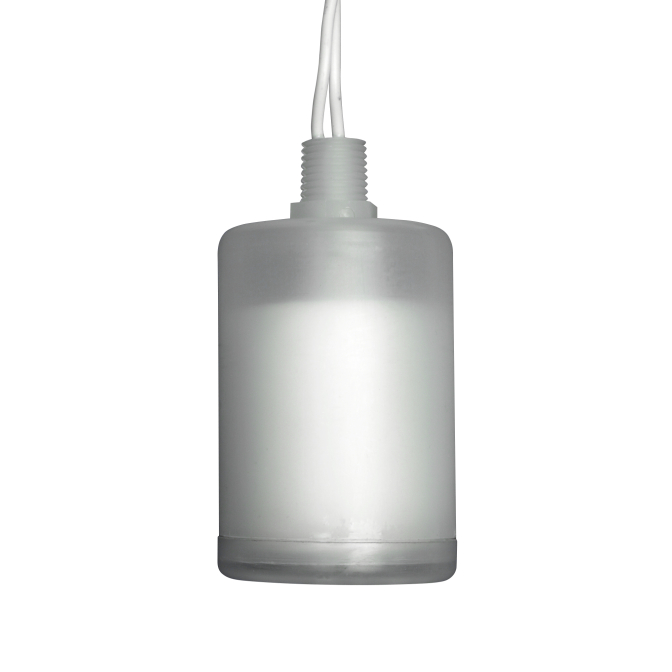

MS8800 Full Size Float Switch with Slosh Shield
$87.00
SKU:
MS8800
Lead Time5 Business Days
Polypropylene full-size slosh-shielded float switch for reliable, high-temperature level control.
Polypropylene float and stem
Rugged 1/4" NPT vertical mounting
Slosh-shielded 60 W SPST switch
The MS8800 Full Size Float Switch with Slosh Shield delivers dependable vertical level sensing using a durable polypropylene float and stem. Rated for 221 °F (105 °C) and 100 psi, it features a slosh shield to maintain stability in turbulent or boiling liquid conditions. Equipped with a reliable SPST switch and global safety certifications, this solution is backed by a one-year warranty. MadisonSensor recommends requesting a quote to confirm pricing and specifications and offers custom-engineered solutions to suit your needs.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/4" NPT |
| Float Material | Polypropylene |
| Stem Material | Polypropylene |
| Switch Logic | Normally Closed |
| Switch Rating | 60 WATT SPST |
| Electrical Ratings | 240V AC, 0.40A; 120V AC, 0.50A; 120V DC, 0.20A; 24V DC, 0.50A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Minimum Media SG | 0.94 |
| Electrical Termination | 24”, 22 AWG, MTW insulated |
| Slosh Shield | Yes |
| Approvals | CE, CSA LR56150, cULus E54633 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
