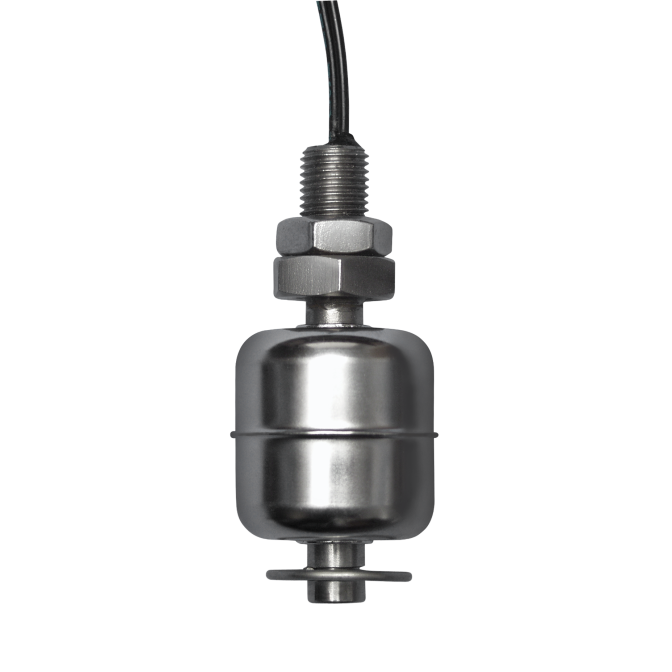

M5000-B Single Point Level Switch (Bulkhead Fitting)
Robust bulkhead float switch designed for high-temperature, high-pressure vertical sensing.
Bulkhead 3/8-24 UNF for secure mounting
316 SS construction ensures chemical resistance
300 PSI and 392 °F rated for tough use
The M5000-B Single Point Level Switch features 316 stainless steel floats and stems housed within a sturdy bulkhead 3/8-24 UNF fitting, delivering vertical-level detection with superior corrosion and high-temperature resilience. Rated for 300 psi and 392 °F and offering normally closed SPST switching, it’s backed by CE, CSA, cULus, and NSF/ANSI 169 certifications, with a one-year warranty and five-day lead time. MadisonSensor prefers quote requests for specification and pricing confirmation and provides custom-engineered solutions to meet your precise industrial requirements.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 3/8-24 UNF |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 200 |
| Temperature (Max-Fahrenheit) | 392 |
| Maximum Pressure (BAR) | 21 |
| Maximum Pressure (PSI) | 300 |
| Minimum Media SG | 0.91 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Float Diameter | 1.18" |
| Slosh Shield | No |
| Approvals | CE, CSA LR56150, cULus E54633, NSF/ANSI 169 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
