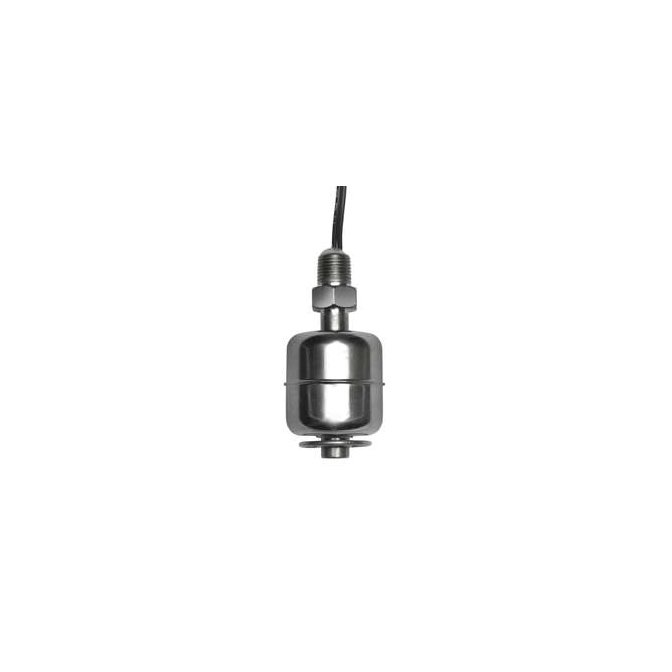

M5000-01BK120 Single Point Level Switch (120" Leads)
$126.00
SKU:
M5000-01BK120
Lead Time10 Business Days
Compact, high-pressure float switch built for reliable vertical level control.
316 SS construction resists corrosion
Handles up to 300 psi pressure
Compact vertical 1/8″ NPT design
The M5000-01BK120 Single Point Level Switch delivers dependable liquid-level detection with robust 316 stainless steel construction ideal for demanding industrial, food processing, or corrosive environments. Its compact 1/8″ NPT vertical design provides up to 300 psi pressure tolerance and high-temperature operation up to 392 °F. Certified to CE, CSA, cULus, and NSF/ANSI 169 standards and backed by a one-year warranty and one-day lead time, it's engineered for quick, reliable deployment in OEM and system-level monitoring. MadisonSensor prefers quote requests for pricing or specification confirmation and offers custom-engineered solutions to meet your precise application requirements.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/8" NPT |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 200 |
| Temperature (Max-Fahrenheit) | 392 |
| Maximum Pressure (BAR) | 21 |
| Maximum Pressure (PSI) | 300 |
| Minimum Media SG | 0.91 |
| Electrical Termination | 120”, 22 AWG, Teflon insulated |
| Float Diameter | 1.18" |
| Slosh Shield | No |
| Approvals | CE, CSA LR56150, cULus E54633, NSF/ANSI 169 |
| Lead Time | 10 Business Days |
