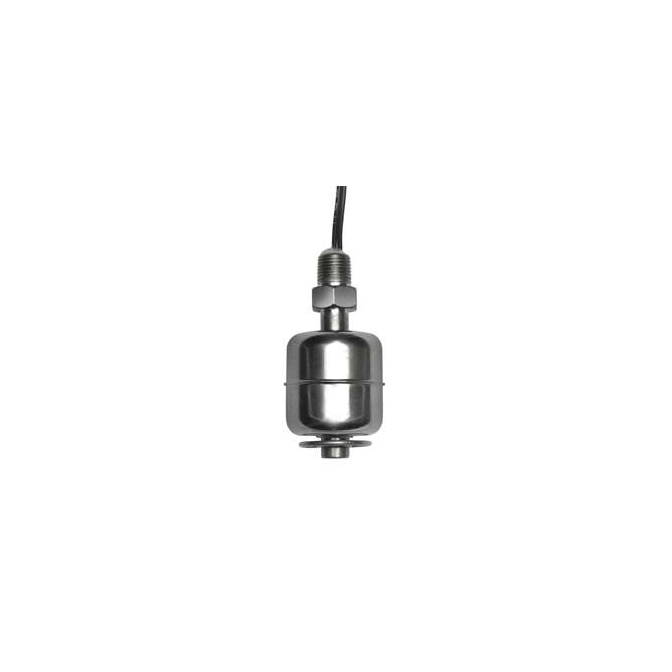

M5000-SPDT Single Point Level Switch (SPDT)
$95.00
SKU:
M5000-SPDT
Lead Time5 Business Days
Compact stainless-steel float switch offering reliable single-point level detection with flexible SPDT logic.
Durable 316 SS construction
Compact vertical mounting
Dual logic SPDT flexibility
- Buy 10 for $90.25 each and save 5%
- Buy 25 for $85.50 each and save 10%
- Buy 100 for $80.75 each and save 15%
The M5000-SPDT is a robust, stainless-steel float switch designed for precise single-point level detection in industrial applications. It serves OEMs and process engineers monitoring tanks, reservoirs, or fluid systems under demanding conditions. With the capability to offer both Normally Open and Normally Closed logic, it adapts to control and safety functions effectively. MadisonSensor recommends requesting a quote for exact pricing and specification confirmation and can provide tailored solutions to fit unique requirements.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/8" NPT |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Normally Open, Normally Closed |
| Switch Rating | 20 WATT SPDT |
| Electrical Ratings | 120 VAC, 0.12A; 100 VDC, 0.10A; 24 VDC, 0.30A; 12 VDC, 0.30A |
| Temperature (Max-Celsius) | 200 |
| Temperature (Max-Fahrenheit) | 392 |
| Maximum Pressure (BAR) | 21 |
| Maximum Pressure (PSI) | 300 |
| Minimum Media SG | 0.91 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Float Diameter | 1.18" |
| Slosh Shield | No |
| Approvals | CE, NSF/ANSI 169 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
