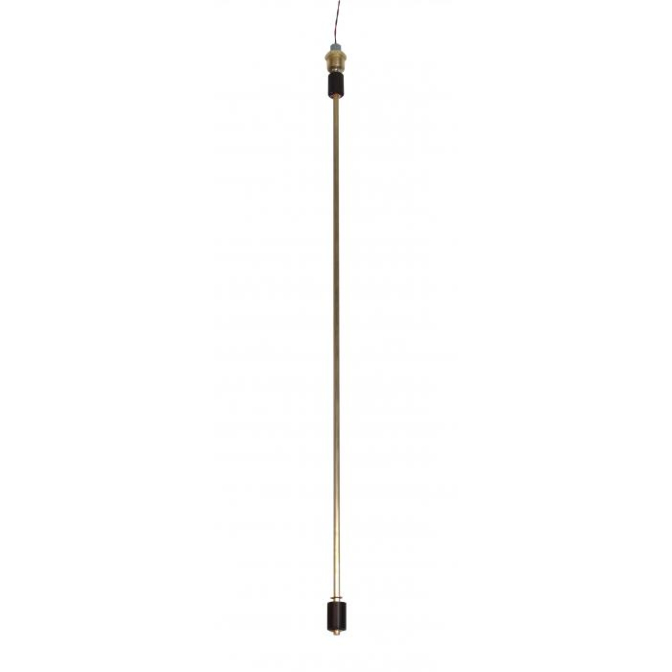

M4168-3 High & Low Level Float Switch
$216.00
SKU:
M4168-3
Lead Time5 Business Days
Dual-level float switch for overfill and low-level detection with durable design.
- Dual-level detection for overfill/low-level alarms
Brass/Buna-N build resists harsh fluids
Long Halar-jacketed cable for flexible uss
- Buy 10 for $205.20 each and save 5%
- Buy 25 for $194.40 each and save 10%
- Buy 100 for $183.60 each and save 15%
The M4168-3 High & Low Level Float Switch is designed for dual-level indication—ideal for monitoring both overfill and underfill conditions in standard 55-gallon drums. Its robust brass stem and Buna-N float ensure reliable performance with CE certification for added compliance. MadisonSensor recommends requesting a quote to confirm exact pricing and specifications and offers custom-engineered solutions tailored to your specific industrial needs.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 3/4" NPT |
| Float Material | Buna-N |
| Stem Material | Brass |
| Switch Logic | Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 11 |
| Maximum Pressure (PSI) | 150 |
| Minimum Media SG | 0.63 |
| Electrical Termination | 72”, 22 AWG, 2 conductor, Halar jacketed cable |
| Float Diameter | 0.9" |
| Slosh Shield | No |
| Approvals | CE, Prop 65 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
