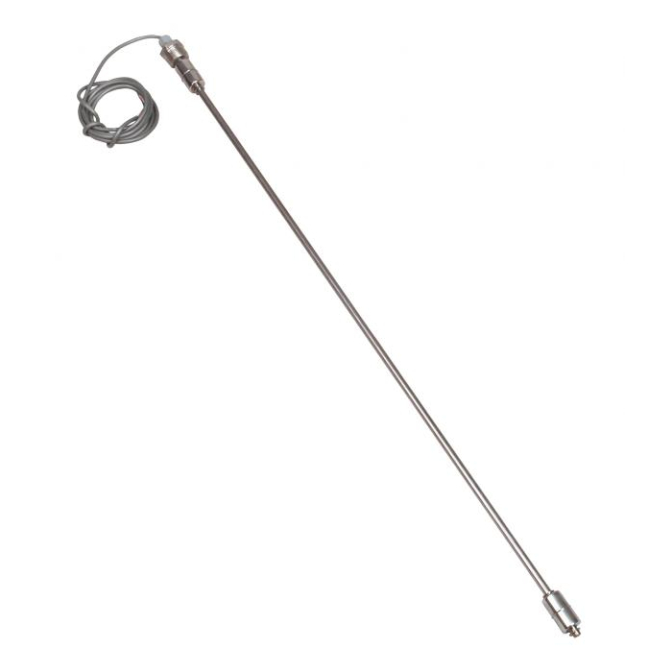

M4169-3 High & Low Level Float Switch
$420.00
SKU:
M4169-3
Lead Time10 Business Days
Dual-level steel float switch for high/low detection in drum applications.
Dual-level detection for high/low alerts
316 SS construction for superior durability
- Long Halar cable for flexible installation
The M4169-3 High & Low Level Float Switch is engineered for dual-level monitoring—providing both overfill (top level) and underfill (bottom level) detection, especially ideal for standard 55-gallon drum applications. Its rugged 316 stainless steel stem and float, combined with CE and NSF certifications, enable high-reliability performance in demanding environments like fuel systems and hydraulic setups. MadisonSensor recommends requesting a quote to confirm pricing and exact specifications, and offers custom-engineered solutions tailored to your application needs.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 3/4" NPT |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 150 |
| Temperature (Max-Fahrenheit) | 302 |
| Maximum Pressure (BAR) | 18 |
| Maximum Pressure (PSI) | 250 |
| Minimum Media SG | 0.91 |
| Electrical Termination | 72”, 22 AWG, 2 conductor, Halar jacketed cable |
| Float Diameter | 0.9" |
| Slosh Shield | No |
| Approvals | CE, NSF/ANSI/CAN 372 |
| Lead Time | 10 Business Days |
| Warranty | 1 Year |
