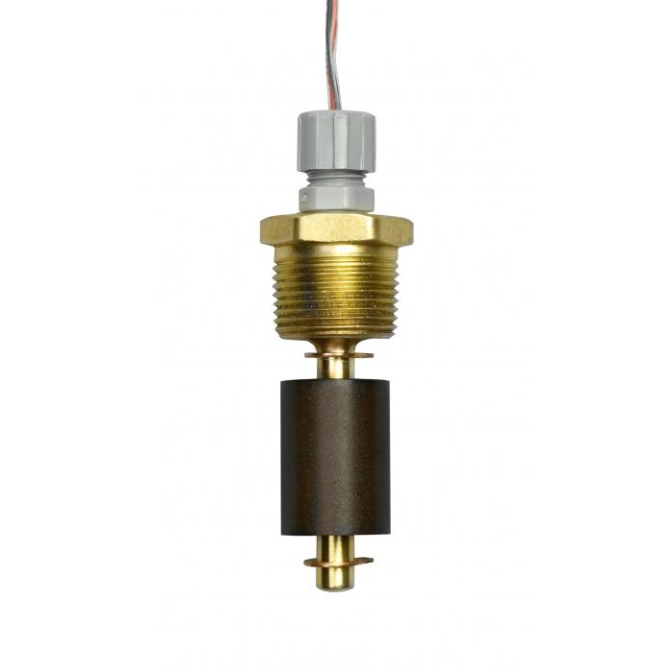

M4168-1 High Level Float Switch
$150.00
SKU:
M4168-1
Lead Time10 Business Days
Reliable high-level float switch for overfill protection in industrial fluid systems.
High-level detection for overfill protection
Brass/Buna-N build resists harsh fluids
Long 6-ft Halar-jacketed cable for flexibility
The M4168-1 High Level Float Switch provides precise overfill protection for tanks and drums in demanding industrial settings, ideal for fuel storage, lubrication systems, and containment monitoring. Its brass stem and Buna-N float ensure durable operation under harsh conditions, with CE and Prop 65 certifications for added compliance. MadisonSensor encourages requesting a quote to confirm accurate pricing and specifications and offers custom-engineered solutions tailored to your application needs.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 3/4" NPT |
| Float Material | Buna-N |
| Stem Material | Brass |
| Switch Logic | Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 11 |
| Maximum Pressure (PSI) | 150 |
| Minimum Media SG | 0.63 |
| Electrical Termination | 72”, 22 AWG, 2 conductor, Halar jacketed cable |
| Float Diameter | 0.9" |
| Slosh Shield | No |
| Approvals | CE, Prop 65 |
| Lead Time | 10 Business Days |
| Warranty | 1 Year |
