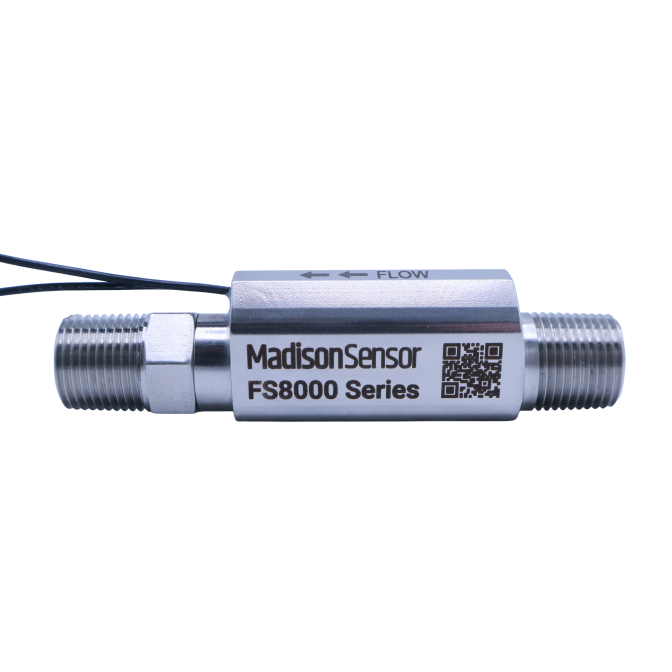

FS8000-10001 Stainless Steel NPT 0.10 GPM Flow Switch
High-pressure stainless-steel flow switch offering clog-resistant SPST control and OEM-grade reliability.
Clog-resistant magnetic Ryton piston
Rugged 316 SS body for harsh environments
Precise SPST switching with 1500 psi rating
- Buy 10 for $320.15 each and save 5%
- Buy 25 for $303.30 each and save 10%
- Buy 100 for $286.45 each and save 15%
The FS8000 Stainless Steel NPT Flow Switch delivers reliable flow detection across demanding industrial applications, with model FS8000-10001 set at 0.10 GPM. Its clog-resistant design—featuring a one-piece magnetic Ryton R4 piston, Viton O-ring, and durable 316 stainless steel body—ensures dependable consistency and minimal pressure drop. Engineered for high-pressure use (up to 1500 psi) and wide temperature range (–20 °F to 275 °F), it's ideal for cooling systems, chemical dosing, and OEM machinery. MadisonSensor prefers quote requests for price checks and spec confirmation and is prepared to offer custom solutions to fit your unique needs.
| Orientation | Horizontal or Vertical |
|---|---|
| Housing Material | 316 Stainless Steel |
| Mounting Type & Size | 3/8" NPT |
| Flow Setting (GPM) | 0.10 |
| Flow Setting (LPM) | 0.38 |
| Set Point Accuracy | +/- 20% |
| Spring Material | 302 Stainless Steel |
| Piston Material | Ryton R4 |
| Switch Logic | Normally Open |
| Switch Rating | 20 WATT SPST |
| Electrical Ratings | 120 VAC, 0.12A; 100 VDC, 0.10A; 24 VDC, 0.30A; 12 VDC, 0.30A |
| Temperature (Max-Celsius) | 135 |
| Temperature (Max-Fahrenheit) | 275 |
| Temperature (Min-Celsius) | -29 |
| Temperature (Min-Fahrenheit) | -20 |
| Maximum Pressure (BAR) | 103 |
| Maximum Pressure (PSI) | 1500 |
| Electrical Termination | 24", 22 AWG, Teflon insulated |
| Approvals | CE, cULus E54633 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
