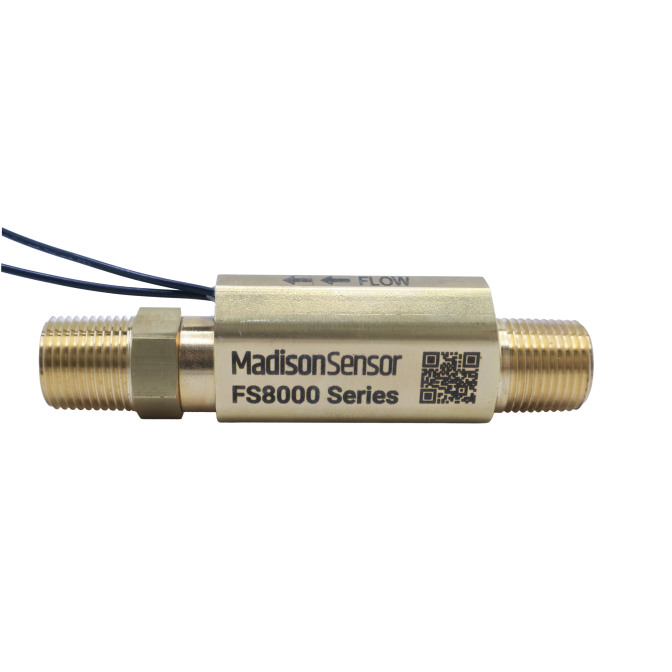

FS8000-15001 Brass NPT 0.10 GPM Flow Switch
Reliable brass-bodied flow switch with clog-resistant piston for efficient 0.10 GPM monitoring.
Clog-resistant one-piece Ryton® piston
Brass housing
Compact 0.10 GPM flow detection
- Buy 10 for $132.05 each and save 5%
- Buy 25 for $125.10 each and save 10%
- Buy 100 for $118.15 each and save 15%
The FS8000-15001 Brass NPT Flow Switch delivers precise 0.10 GPM flow monitoring with a durable brass body and a high-quality 316 SS float. Featuring a clog-resistant Ryton® R4 piston and compact NPT design, it ensures dependable performance with minimal pressure drop. Rated for up to 135 °C (275 °F) and compatible with multiple voltages, it’s ideal for OEM systems, cooling lines, or fluid monitoring in compact hydraulic loops. MadisonSensor prefers quote requests for exact pricing and specifications and offers tailored solutions to meet your specific industrial needs.
| Orientation | Horizontal or Vertical |
|---|---|
| Housing Material | Brass |
| Mounting Type & Size | 3/8" NPT |
| Flow Setting (GPM) | 0.10 |
| Flow Setting (LPM) | 0.38 |
| Set Point Accuracy | +/- 20% |
| Spring Material | 302 Stainless Steel |
| Piston Material | Ryton R4 |
| Switch Logic | Normally Open |
| Switch Rating | 20 WATT SPST |
| Electrical Ratings | 120 VAC, 0.12A; 100 VDC, 0.10A; 24 VDC, 0.30A; 12 VDC, 0.30A |
| Temperature (Max-Celsius) | 135 |
| Temperature (Max-Fahrenheit) | 275 |
| Maximum Pressure (BAR) | 103 |
| Maximum Pressure (PSI) | 1500 |
| Electrical Termination | 24", 22 AWG, Teflon insulated |
| Approvals | CE, cULus E54633 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
