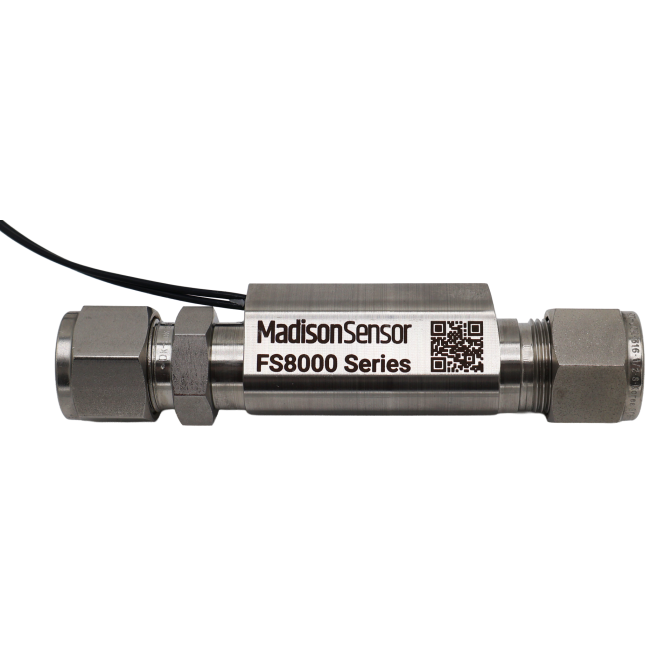

FS8000-20001 Stainless Steel Compression 0.10 GPM Flow Switch
Durable compression-style flow switch with clog-resistant piston for accurate 0.10 GPM detection.
Clog-resistant Ryton® R4 piston
Rugged 316 SS compression housing
Compact 0.10 GPM flow detection
The FS8000-20001 Stainless Steel Compression Flow Switch delivers reliable 0.10 GPM flow monitoring in high-pressure industrial lines. Crafted with a clog-resistant Ryton® R4 piston and durable 316 stainless steel compression fitting, it withstands pressures up to 1,500 PSI and temperatures from –20 °F to 275 °F. Packaged with SPST switching capability, CE and cULus approvals, and designed to maintain low pressure drop, it suits OEM, chemical dosing, and coolant loop applications. MadisonSensor prefers quote requests for precise specifications and pricing confirmation and offers customized configurations as needed.
| Orientation | Horizontal or Vertical |
|---|---|
| Housing Material | 316 Stainless Steel |
| Mounting Type & Size | 3/8" Compression Fitting |
| Flow Setting (GPM) | 0.10 |
| Flow Setting (LPM) | 0.38 |
| Set Point Accuracy | +/- 20% |
| Spring Material | 302 Stainless Steel |
| Piston Material | Ryton R4 |
| Switch Rating | 20 WATT SPST |
| Electrical Ratings | 120 VAC, 0.12A; 100 VDC, 0.10A; 24 VDC, 0.30A; 12 VDC, 0.30A |
| Temperature (Max-Celsius) | 135 |
| Temperature (Max-Fahrenheit) | 275 |
| Temperature (Min-Celsius) | -29 |
| Temperature (Min-Fahrenheit) | -20 |
| Maximum Pressure (BAR) | 103 |
| Maximum Pressure (PSI) | 1500 |
| Electrical Termination | 24", 22 AWG, Teflon insulated |
| Approvals | CE, cULus E54633 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
