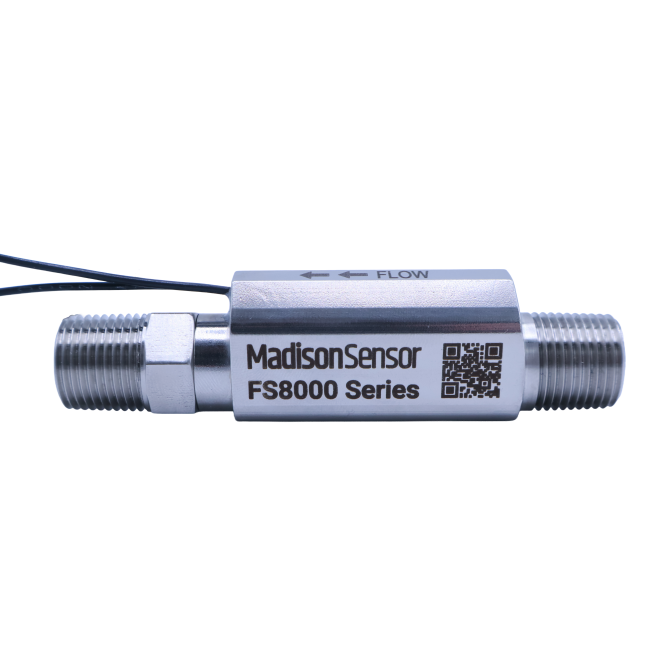

FS8000-10010 Stainless Steel NPT 3.00 GPM Flow Switch
Heavy-duty stainless-steel flow switch with 3 GPM capacity, SPST control, and clog-resistant design.
Clog-resistant Ryton R4 piston
Durable 316 SS housing withstands 1,500 PSI
Reliable Normally-Open SPST switching
- Buy 10 for $320.15 each and save 5%
- Buy 25 for $303.30 each and save 10%
- Buy 100 for $286.45 each and save 15%
The FS8000-10010 Stainless Steel NPT Flow Switch delivers accurate 3.00 GPM flow detection in demanding industrial environments. Featuring a clog-resistant Ryton R4 piston, Viton-sealed components, and a rugged 316 stainless steel body, it operates reliably between –20 °F and 275 °F. With a high-pressure rating of 1,500 PSI, Normally-Open SPST logic, and engineered for minimal pressure drop, it excels in cooling systems, OEM machinery, and chemical dosing applications. MadisonSensor prefers quote requests for pricing and spec validation and offers custom solutions tailored to your system needs.
| Orientation | Horizontal or Vertical |
|---|---|
| Housing Material | 316 Stainless Steel |
| Mounting Type & Size | 3/8" NPT |
| Flow Setting (GPM) | 3.00 |
| Flow Setting (LPM) | 11.36 |
| Set Point Accuracy | +/- 10% |
| Spring Material | 302 Stainless Steel |
| Piston Material | Ryton R4 |
| Switch Logic | Normally Open |
| Switch Rating | 20 WATT SPST |
| Electrical Ratings | 120 VAC, 0.12A; 100 VDC, 0.10A; 24 VDC, 0.30A; 12 VDC, 0.30A |
| Temperature (Max-Celsius) | 135 |
| Temperature (Max-Fahrenheit) | 275 |
| Temperature (Min-Celsius) | -29 |
| Temperature (Min-Fahrenheit) | -20 |
| Maximum Pressure (BAR) | 103 |
| Maximum Pressure (PSI) | 1500 |
| Electrical Termination | 24", 22 AWG, Teflon insulated |
| Approvals | CE, cULus E54633 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
