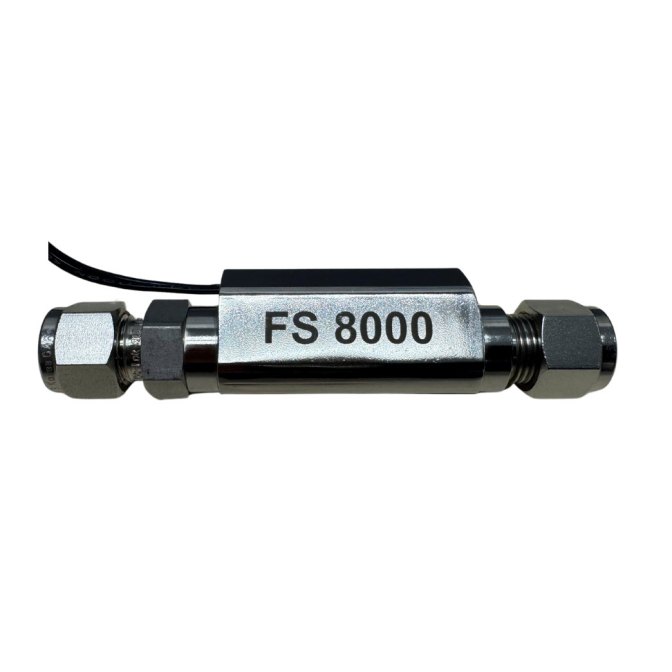

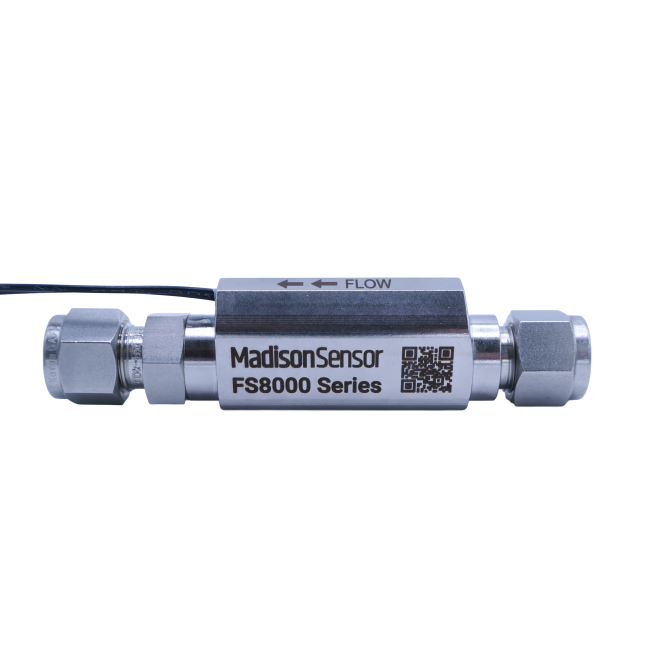

FS8000-20010 Stainless Steel Compression 3.00 GPM Flow Switch
High-pressure stainless steel flow switch delivering accurate 3 GPM detection with clog-resistant reliability.
Clog-resistant Ryton® R4 piston
316 SS compression body for rugged performance
Precise 3 GPM SPST switching under high pressure
- Buy 10 for $329.65 each and save 5%
- Buy 25 for $312.30 each and save 10%
- Buy 100 for $294.95 each and save 15%
The FS8000-20010 Stainless Steel Compression Flow Switch offers accurate 3.00 GPM flow monitoring in demanding industrial systems. With a clog-resistant Ryton® R4 piston and robust 316 stainless steel housing, it withstands up to 1,500 PSI and operates reliably from –20 °F to 275 °F. Featuring Normally-Open SPST switching, CE and cULus approvals, low-pressure-drop design, and backed by a one-year warranty, it’s ideal for cooling loops, process control, and OEM equipment. MadisonSensor prefers quote requests to validate specs and pricing and stands ready to provide custom configurations tailored to your application.
| Orientation | Horizontal or Vertical |
|---|---|
| Housing Material | 316 Stainless Steel |
| Mounting Type & Size | 3/8" Compression Fitting |
| Flow Setting (GPM) | 3.00 |
| Flow Setting (LPM) | 11.36 |
| Set Point Accuracy | +/- 10% |
| Spring Material | 302 Stainless Steel |
| Piston Material | Ryton R4 |
| Switch Logic | Normally Open |
| Switch Rating | 20 WATT SPST |
| Electrical Ratings | 120 VAC, 0.12A; 100 VDC, 0.10A; 24 VDC, 0.30A; 12 VDC, 0.30A |
| Temperature (Max-Celsius) | 135 |
| Temperature (Max-Fahrenheit) | 275 |
| Temperature (Min-Celsius) | -29 |
| Temperature (Min-Fahrenheit) | -20 |
| Maximum Pressure (BAR) | 103 |
| Maximum Pressure (PSI) | 1500 |
| Electrical Termination | 24", 22 AWG, Teflon insulated |
| Approvals | CE, cULus E54633 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
