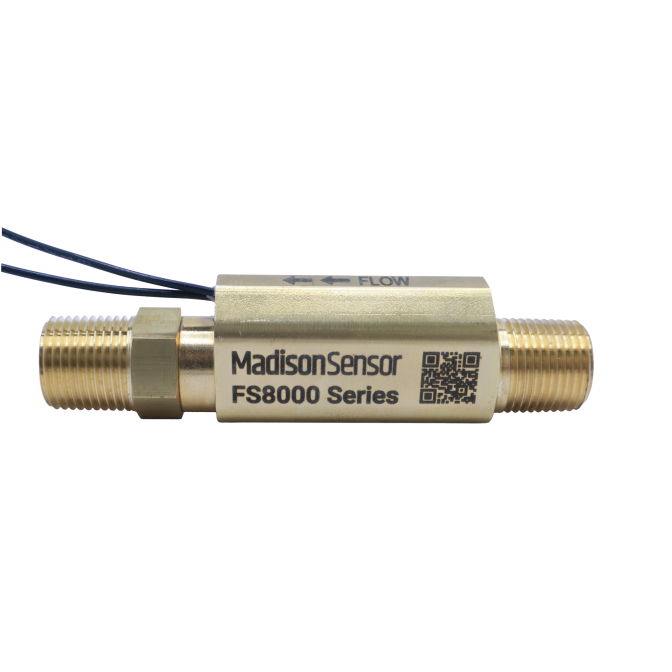

FS8000-15010 Brass NPT 3.00 GPM Flow Switch
Compact brass flow switch with clog-resistant piston and accurate 3 GPM detection.
Clog-resistant Ryton® R4 piston
Durable brass housing handles high pressure
Precise 3 GPM detection with ±10% accuracy
- Buy 10 for $132.05 each and save 5%
- Buy 25 for $125.10 each and save 10%
- Buy 100 for $118.15 each and save 15%
The FS8000-15010 Brass NPT Flow Switch provides dependable flow detection at 3.00 GPM in robust industrial systems. Its clog-resistant Ryton® R4 piston, paired with a durable brass housing and reliable SPST switching, ensures consistent performance up to 1,500 PSI and 275 °F. With NPT connectivity, versatile orientation options, and CE/cULus compliance, this compact unit excels in OEM applications, cooling lines, and process control circuits. MadisonSensor prefers quote requests to confirm the latest pricing and specifications and is ready to deliver custom solutions as required.
| Orientation | Horizontal or Vertical |
|---|---|
| Housing Material | Brass |
| Mounting Type & Size | 3/8" NPT |
| Flow Setting (GPM) | 3.00 |
| Flow Setting (LPM) | 11.36 |
| Set Point Accuracy | +/- 10% |
| Spring Material | 302 Stainless Steel |
| Piston Material | Ryton R4 |
| Switch Logic | Normally Open |
| Switch Rating | 20 WATT SPST |
| Electrical Ratings | 120 VAC, 0.12A; 100 VDC, 0.10A; 24 VDC, 0.30A; 12 VDC, 0.30A |
| Temperature (Max-Celsius) | 135 |
| Temperature (Max-Fahrenheit) | 275 |
| Maximum Pressure (BAR) | 103 |
| Maximum Pressure (PSI) | 1500 |
| Electrical Termination | 24", 22 AWG, Teflon insulated |
| Approvals | CE, cULus E54633 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
