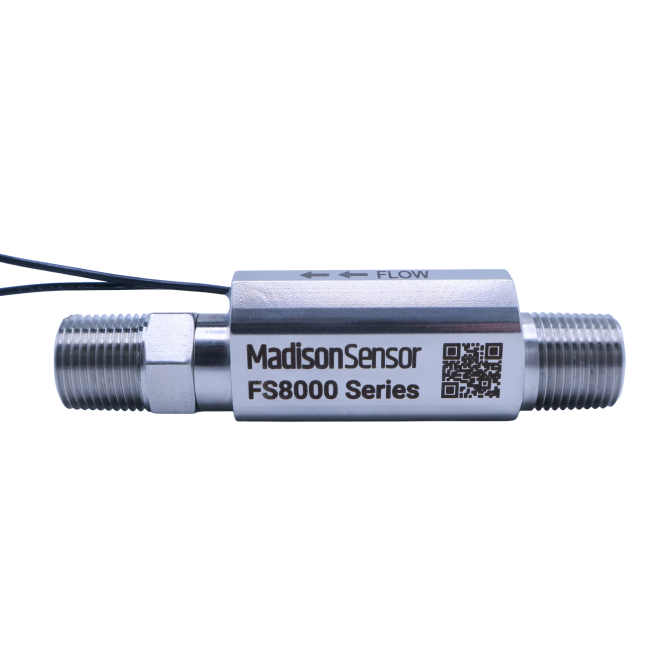

FS8000-10007 Stainless Steel NPT 1.50 GPM Flow Switch
High-pressure stainless-steel flow switch with SPST control, accurate performance, and reliable piston design.
Durable 316 SS housing for harsh environments
Clog-resistant Ryton R4 piston design
Reliable 20 W SPST switching, Normally Open
- Buy 10 for $320.15 each and save 5%
- Buy 25 for $303.30 each and save 10%
- Buy 100 for $286.45 each and save 15%
The FS8000-10007 Stainless Steel NPT Flow Switch reliably detects 1.50 GPM in demanding industrial systems. Its clog-resistant Ryton R4 piston and robust 316 SS housing resist wear even under tough conditions, handling pressures up to 1,500 PSI and temperatures from –20 °F to 275 °F. With ±10 % accuracy, Normally Open SPST logic, and UL recognition, it excels in industrial OEM, cooling, and process control applications. MadisonSensor encourages quote requests for precise pricing and specification confirmation and can customize solutions to fit your needs.
| Orientation | Horizontal or Vertical |
|---|---|
| Housing Material | 316 Stainless Steel |
| Mounting Type & Size | 3/8" NPT |
| Flow Setting (GPM) | 1.50 |
| Flow Setting (LPM) | 5.68 |
| Set Point Accuracy | +/- 10% |
| Spring Material | 302 Stainless Steel |
| Piston Material | Ryton R4 |
| Switch Logic | Normally Open |
| Switch Rating | 20 WATT SPST |
| Electrical Ratings | 120 VAC, 0.12A; 100 VDC, 0.10A; 24 VDC, 0.30A; 12 VDC, 0.30A |
| Temperature (Max-Celsius) | 135 |
| Temperature (Max-Fahrenheit) | 275 |
| Temperature (Min-Celsius) | -29 |
| Temperature (Min-Fahrenheit) | -20 |
| Maximum Pressure (BAR) | 103 |
| Maximum Pressure (PSI) | 1500 |
| Electrical Termination | 24", 22 AWG, Teflon insulated |
| Approvals | CE, cULus E54633 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
