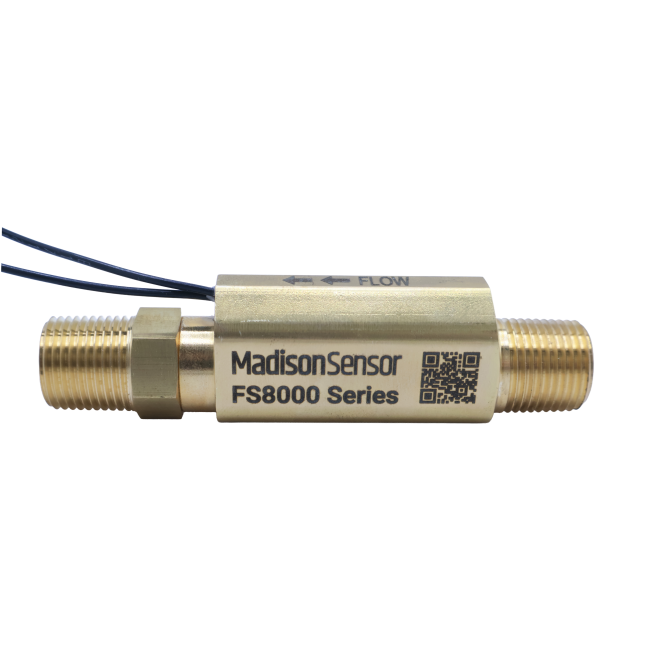

FS8000-15007 Brass NPT 1.50 GPM Flow Switch
Compact brass flow switch with clog-resistant piston offering dependable 1.5 GPM detection.
Clog-resistant Ryton® R4 piston
Brass housing with 316 SS float
Reliable 1.5 GPM detection
The FS8000-15007 Brass NPT Flow Switch delivers precise 1.50 GPM flow detection in a compact brass design with a durable 316-stainless-steel float and clog-resistant Ryton® R4 piston. With multi-voltage compatibility and robust materials, it’s well-suited for industrial cooling systems, OEM fluid loops, and process monitoring environments. While detailed specs like switch logic and certifications are not explicitly listed, MadisonSensor prefers quote requests to confirm accurate pricing and specifications and stands ready to provide custom configurations to meet specific engineering requirements.
| Orientation | Horizontal or Vertical |
|---|---|
| Housing Material | Brass |
| Mounting Type & Size | 3/8" NPT |
| Flow Setting (GPM) | 1.50 |
| Flow Setting (LPM) | 5.68 |
| Set Point Accuracy | +/- 10% |
| Spring Material | 302 Stainless Steel |
| Piston Material | Ryton R4 |
| Switch Rating | 20 WATT SPST |
| Electrical Ratings | 120 VAC, 0.12A; 100 VDC, 0.10A; 24 VDC, 0.30A; 12 VDC, 0.30A |
| Temperature (Max-Celsius) | 135 |
| Temperature (Max-Fahrenheit) | 275 |
| Maximum Pressure (BAR) | 103 |
| Maximum Pressure (PSI) | 1500 |
| Electrical Termination | 24", 22 AWG, Teflon insulated |
| Approvals | CE, cULus E54633 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
