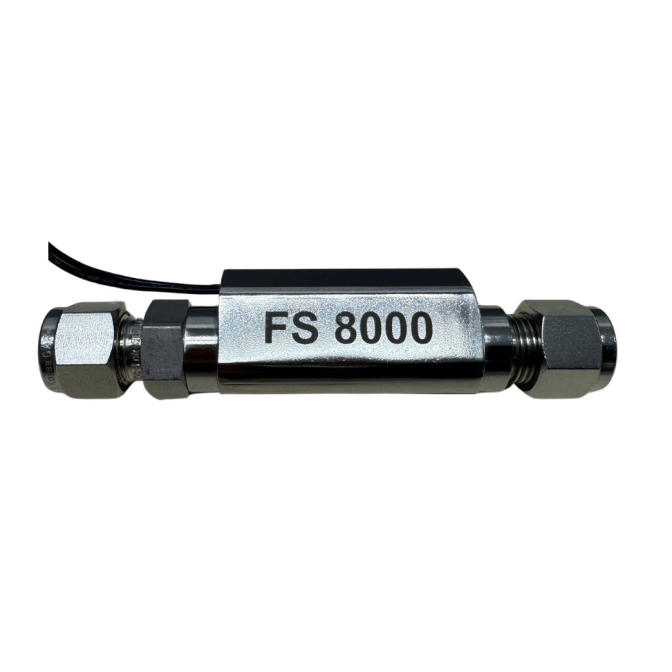

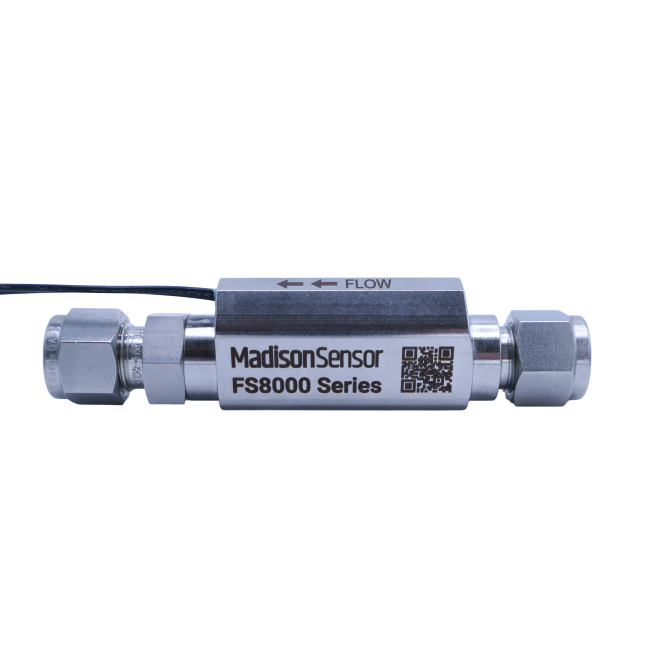

FS8000-20007 Stainless Steel Compression 1.50 GPM Flow Switch
High-pressure stainless flow switch with clog-resistant piston and accurate 1.50 GPM detection.
Clog-resistant Ryton® R4 piston
Durable 316 SS compression housing
Precise 1.50 GPM SPST switching
- Buy 10 for $329.65 each and save 5%
- Buy 25 for $312.30 each and save 10%
- Buy 100 for $294.95 each and save 15%
The FS8000-20007 Stainless Steel Compression Flow Switch is engineered for high-precision 1.50 GPM monitoring in demanding industrial environments. Its clog-resistant Ryton® R4 piston, Viton-sealed components, and sturdy 316 stainless-steel compression fitting ensure reliable performance under temperatures from –20 °F to 275 °F and pressures up to 1,500 PSI. Featuring Normally-Open SPST switching, industry-standard approvals, and swift manufacturing turnaround, it's ideal for processes such as chemical dosing, OEM fluid control, and cooling loop monitoring. MadisonSensor prefers quote requests for verified spec and price accuracy and can tailor the solution to your system requirements.
| Orientation | Horizontal or Vertical |
|---|---|
| Housing Material | 316 Stainless Steel |
| Mounting Type & Size | 3/8" Compression Fitting |
| Flow Setting (GPM) | 1.50 |
| Flow Setting (LPM) | 5.68 |
| Set Point Accuracy | +/- 10% |
| Spring Material | 302 Stainless Steel |
| Piston Material | Ryton R4 |
| Switch Logic | Normally Open |
| Switch Rating | 20 WATT SPST |
| Electrical Ratings | 120 VAC, 0.12A; 100 VDC, 0.10A; 24 VDC, 0.30A; 12 VDC, 0.30A |
| Temperature (Max-Celsius) | 135 |
| Temperature (Max-Fahrenheit) | 275 |
| Temperature (Min-Celsius) | -29 |
| Temperature (Min-Fahrenheit) | -20 |
| Maximum Pressure (BAR) | 103 |
| Maximum Pressure (PSI) | 1500 |
| Electrical Termination | 24", 22 AWG, Teflon insulated |
| Approvals | CE, cULus E54633 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
