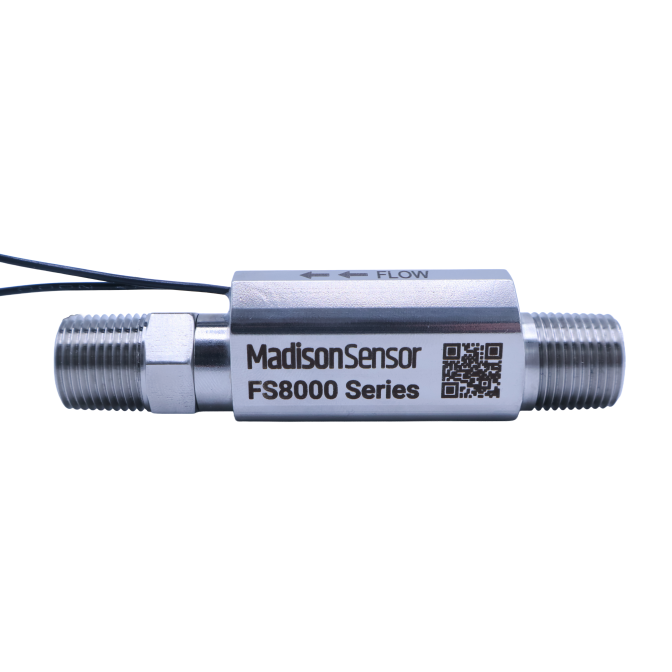

FS8000-10006 Stainless Steel NPT 1.00 GPM Flow Switch
Robust 316 SS flow switch with SPST control, ±10 % accuracy, and high-pressure reliability.
Durable 316 SS housing for rugged reliability
Clog-resistant Ryton R4 piston ensures consistent performance
Accurate SPST switching with ±10 % setpoint precision
- Buy 10 for $320.15 each and save 5%
- Buy 25 for $303.30 each and save 10%
- Buy 100 for $286.45 each and save 15%
The FS8000-10006 Stainless Steel NPT Flow Switch delivers precise 1.00 GPM flow detection under tough industrial conditions. Built with a clog-resistant Ryton R4 piston, 316 stainless steel housing, and Viton-sealed components, it operates reliably in environments from –20 °F to 275 °F and handles pressures up to 1,500 PSI. With ±10 % flow accuracy, SPST switching, multi-voltage compatibility, and global approvals (CE, cULus), it’s ideal for cooling systems, chemical dosing, or OEM integration. MadisonSensor prefers quote requests to confirm pricing and technical specs, and offers custom solutions to meet your application needs.
| Orientation | Horizontal or Vertical |
|---|---|
| Housing Material | 316 Stainless Steel |
| Mounting Type & Size | 3/8" NPT |
| Flow Setting (GPM) | 1.00 |
| Flow Setting (LPM) | 3.79 |
| Set Point Accuracy | +/- 10% |
| Spring Material | 302 Stainless Steel |
| Piston Material | Ryton R4 |
| Switch Logic | Normally Open |
| Switch Rating | 20 WATT SPST |
| Electrical Ratings | 120 VAC, 0.12A; 100 VDC, 0.10A; 24 VDC, 0.30A; 12 VDC, 0.30A |
| Temperature (Max-Celsius) | 135 |
| Temperature (Max-Fahrenheit) | 275 |
| Temperature (Min-Celsius) | -29 |
| Temperature (Min-Fahrenheit) | -20 |
| Maximum Pressure (BAR) | 103 |
| Maximum Pressure (PSI) | 1500 |
| Electrical Termination | 24", 22 AWG, Teflon insulated |
| Approvals | CE, cULus E54633 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
