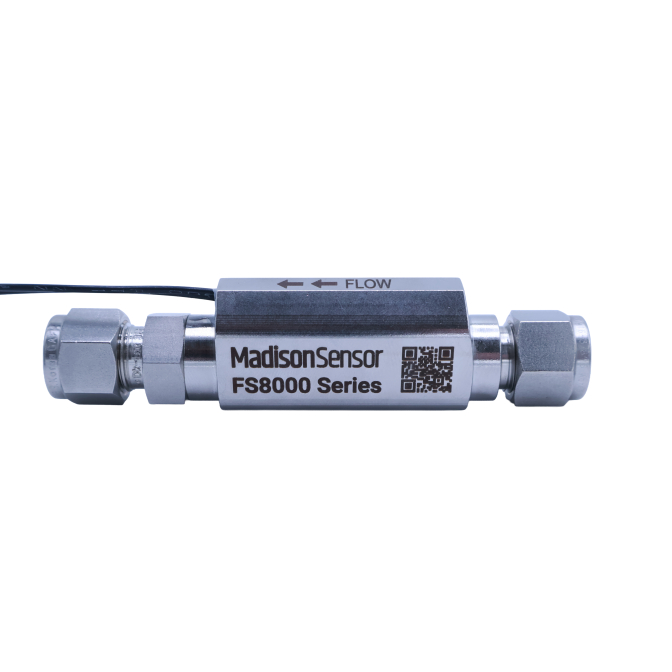

FS8000-20006 Stainless Steel Compression 1.00 GPM Flow Switch
Durable stainless flow switch with clog-resistant piston delivers reliable 1 GPM monitoring in high-pressure applications.
Clog-resistant Ryton® R4 piston
Rugged 316 SS compression housing
Precise 1 GPM SPST switching
- Buy 10 for $329.65 each and save 5%
- Buy 25 for $312.30 each and save 10%
- Buy 100 for $294.95 each and save 15%
The FS8000-20006 Stainless Steel Compression Flow Switch offers accurate 1.00 GPM flow detection in high-pressure systems. Built with a clog-resistant Ryton® R4 piston and durable 316 SS compression fitting, it reliably operates between –20 °F and 275 °F under pressures up to 1,500 PSI. Featuring Normally Open SPST switching, CE and cULus approvals, and quick 5-day lead time with a 1-year warranty, it’s ideal for cooling systems, OEM equipment, and fluid control in rugged environments. MadisonSensor prefers quote requests to confirm precise specifications and pricing, and provides custom engineering solutions as needed.
| Orientation | Horizontal or Vertical |
|---|---|
| Housing Material | 316 Stainless Steel |
| Mounting Type & Size | 3/8" Compression Fitting |
| Flow Setting (GPM) | 1.00 |
| Flow Setting (LPM) | 3.79 |
| Set Point Accuracy | +/- 10% |
| Spring Material | 302 Stainless Steel |
| Piston Material | Ryton R4 |
| Switch Logic | Normally Open |
| Switch Rating | 20 WATT SPST |
| Electrical Ratings | 120 VAC, 0.12A; 100 VDC, 0.10A; 24 VDC, 0.30A; 12 VDC, 0.30A |
| Temperature (Max-Celsius) | 135 |
| Temperature (Max-Fahrenheit) | 275 |
| Temperature (Min-Celsius) | -29 |
| Temperature (Min-Fahrenheit) | -20 |
| Maximum Pressure (BAR) | 103 |
| Maximum Pressure (PSI) | 1500 |
| Electrical Termination | 24", 22 AWG, Teflon insulated |
| Approvals | CE, cULus E54633 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
