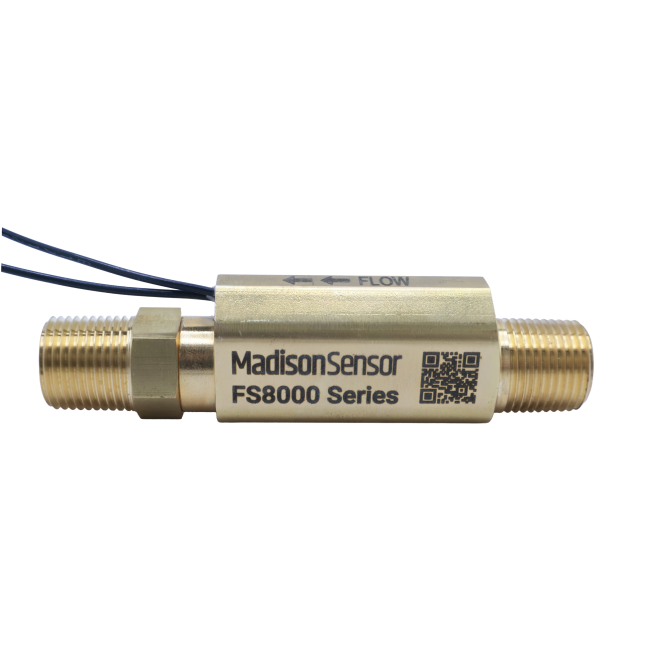

FS8000-15006 Brass NPT 1.00 GPM Flow Switch
$139.00
SKU:
FS8000-15006
Lead Time5 Business Days
Reliable brass flow switch with clog-resistant piston for accurate 1 GPM detection.
Clog-resistant Ryton® R4 piston
Compact brass housing with 316 SS float
Accurate 1 GPM detection with ±10% precision
The FS8000-15006 Brass NPT Flow Switch provides precise 1.00 GPM flow monitoring with a durable brass housing and clog-resistant Ryton® R4 piston. With multi-range voltage compatibility, CE and cULus approvals, and a 1,500 PSI pressure rating, it delivers dependable performance across industrial settings—from cooling loops to OEM integration. MadisonSensor prefers quote requests for accurate pricing and specification confirmation and is ready to supply custom solutions tailored to your unique requirements.
| Orientation | Horizontal or Vertical |
|---|---|
| Housing Material | Brass |
| Mounting Type & Size | 3/8" NPT |
| Flow Setting (GPM) | 1.00 |
| Flow Setting (LPM) | 3.79 |
| Set Point Accuracy | +/- 10% |
| Spring Material | 302 Stainless Steel |
| Piston Material | Ryton R4 |
| Switch Rating | 20 WATT SPST |
| Electrical Ratings | 120 VAC, 0.12A; 100 VDC, 0.10A; 24 VDC, 0.30A; 12 VDC, 0.30A |
| Temperature (Max-Celsius) | 135 |
| Temperature (Max-Fahrenheit) | 275 |
| Maximum Pressure (BAR) | 103 |
| Maximum Pressure (PSI) | 1500 |
| Electrical Termination | 24", 22 AWG, Teflon insulated |
| Approvals | CE, cULus E54633 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
