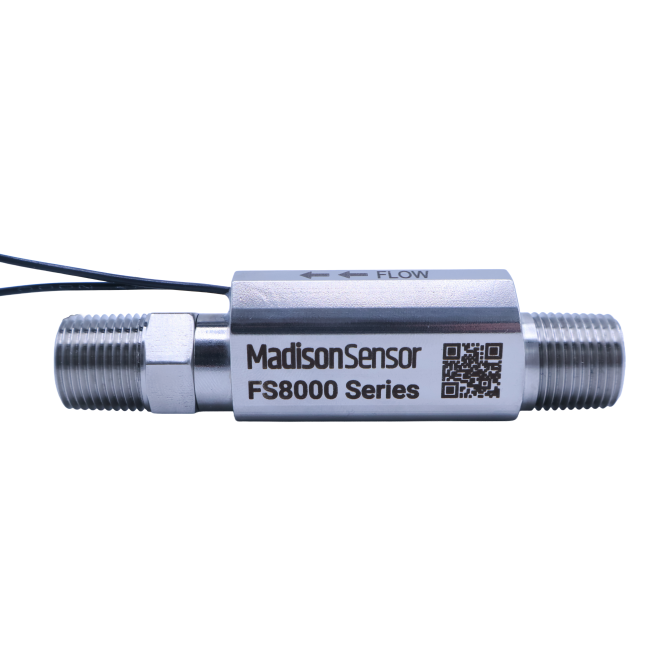

FS8000-10005 Stainless Steel NPT 0.75 GPM Flow Switch
Reliable stainless-steel flow switch with SPST control, high pressure rating, and clog-resistant Ryton piston.
Clog-resistant Ryton R4 one-piece piston
Durable 316 SS housing withstands 1,500 psi
Reliable SPST switch with 100 µm filtration
- Buy 10 for $320.15 each and save 5%
- Buy 25 for $303.30 each and save 10%
- Buy 100 for $286.45 each and save 15%
The FS8000-10005 Stainless Steel NPT Flow Switch delivers precise flow detection at 0.75 GPM, optimized for high-pressure industrial applications. Featuring a clog-resistant one-piece Ryton R4 piston, Viton O-ring, and 316 stainless steel housing, this switch operates reliably from −20 °F to 275 °F under pressures up to 1,500 psi. With ±10 % accuracy, SPST switching, and comprehensive electrical ratings, it performs exceptionally in cooling systems, chemical dosing setups, and OEM environments. MadisonSensor prefers quote requests for verifying pricing and specifications, and offers customized solutions to meet unique customer requirements.
| Orientation | Horizontal or Vertical |
|---|---|
| Housing Material | 316 Stainless Steel |
| Mounting Type & Size | 3/8" NPT |
| Flow Setting (GPM) | 0.75 |
| Flow Setting (LPM) | 2.84 |
| Set Point Accuracy | +/- 10% |
| Spring Material | 302 Stainless Steel |
| Piston Material | Ryton R4 |
| Switch Logic | Normally Open |
| Switch Rating | 20 WATT SPST |
| Electrical Ratings | 120 VAC, 0.12A; 100 VDC, 0.10A; 24 VDC, 0.30A; 12 VDC, 0.30A |
| Temperature (Max-Celsius) | 135 |
| Temperature (Max-Fahrenheit) | 275 |
| Temperature (Min-Celsius) | -29 |
| Temperature (Min-Fahrenheit) | -20 |
| Maximum Pressure (BAR) | 103 |
| Maximum Pressure (PSI) | 1500 |
| Electrical Termination | 24", 22 AWG, Teflon insulated |
| Approvals | CE, cULus E54633 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
