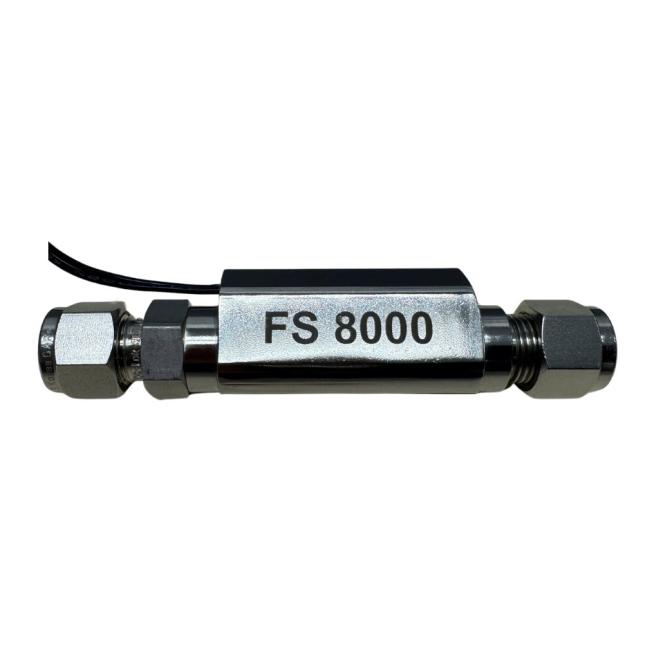

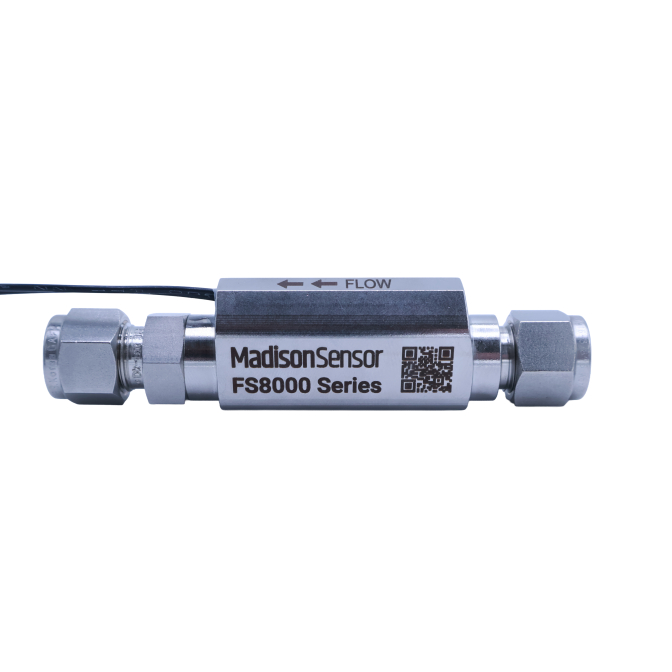

FS8000-20005 Stainless Steel Compression 0.75 GPM Flow Switch
High-pressure stainless flow switch with clog-resistant piston for accurate 0.75 GPM detection.
Clog-resistant Ryton® R4 piston
Rugged 316 SS compression housing
Precise 0.75 GPM SPST switching
The FS8000-20005 Stainless Steel Compression Flow Switch provides reliable 0.75 GPM flow monitoring in demanding, high-pressure systems. Featuring a clog-resistant Ryton® R4 piston, Viton-sealed components, and a durable 316 stainless steel compression housing, it operates effectively between –20 °F and 275 °F under pressures up to 1,500 PSI. With SPST, normally open switching rated at 20 W, standard global certifications, and designed for low pressure drop and superior reliability, it’s perfectly suited for industrial cleaning, cooling circuits, and fluid control in OEM or process applications. MadisonSensor prefers quote requests for accurate pricing and specification validation and offers custom-tailored configurations on request.
| Orientation | Horizontal or Vertical |
|---|---|
| Housing Material | 316 Stainless Steel |
| Mounting Type & Size | 3/8" Compression Fitting |
| Flow Setting (GPM) | 0.75 |
| Flow Setting (LPM) | 2.84 |
| Set Point Accuracy | +/- 10% |
| Spring Material | 302 Stainless Steel |
| Piston Material | Ryton R4 |
| Switch Rating | 20 WATT SPST |
| Electrical Ratings | 120 VAC, 0.12A; 100 VDC, 0.10A; 24 VDC, 0.30A; 12 VDC, 0.30A |
| Temperature (Max-Celsius) | 135 |
| Temperature (Max-Fahrenheit) | 275 |
| Temperature (Min-Celsius) | -29 |
| Temperature (Min-Fahrenheit) | -20 |
| Maximum Pressure (BAR) | 103 |
| Maximum Pressure (PSI) | 1500 |
| Electrical Termination | 24", 22 AWG, Teflon insulated |
| Approvals | CE, cULus E54633 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
