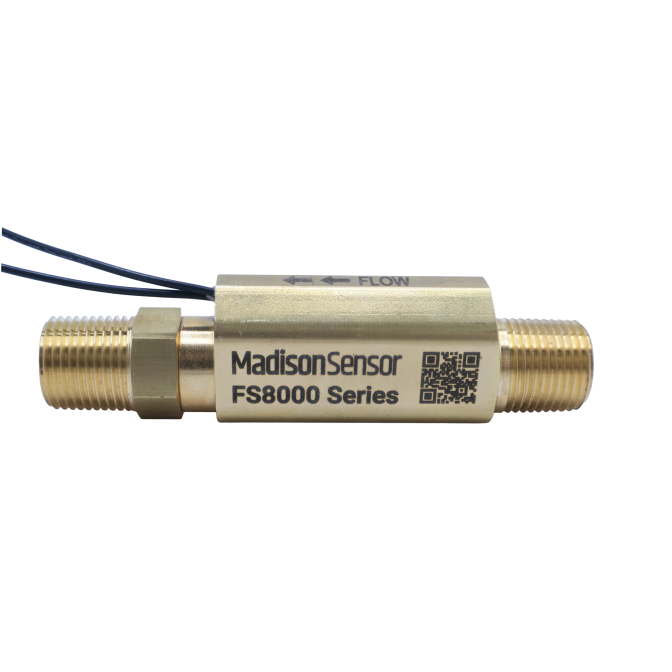

FS8000-15005 Brass NPT 0.75 GPM Flow Switch
Compact brass flow switch with clog-resistant piston offering accurate 0.75 GPM detection.
Clog-resistant Ryton® piston
Durable brass body with 316 SS float
Precise 0.75 GPM detection
The FS8000-15005 Brass NPT Flow Switch delivers dependable 0.75 GPM flow monitoring in a compact brass housing, enhanced with a stainless-steel float and clog-resistant Ryton® R4 piston. Designed for versatility, it offers reliable performance across a wide range of industrial fluids and pressure conditions, while operating at up to 275 °F and compatible with common voltages. Although orientation, switch logic, and approvals are not explicitly detailed, MadisonSensor encourages quote requests to confirm precise specifications and pricing and stands ready with tailored solutions for your system needs.
| Orientation | Horizontal or Vertical |
|---|---|
| Housing Material | Brass |
| Mounting Type & Size | 3/8" NPT |
| Flow Setting (GPM) | 0.75 |
| Flow Setting (LPM) | 2.84 |
| Set Point Accuracy | +/- 10% |
| Spring Material | 302 Stainless Steel |
| Piston Material | Ryton R4 |
| Switch Rating | 20 WATT SPST |
| Electrical Ratings | 120 VAC, 0.12A; 100 VDC, 0.10A; 24 VDC, 0.30A; 12 VDC, 0.30A |
| Temperature (Max-Celsius) | 135 |
| Temperature (Max-Fahrenheit) | 275 |
| Maximum Pressure (BAR) | 103 |
| Maximum Pressure (PSI) | 1500 |
| Electrical Termination | 24", 22 AWG, Teflon insulated |
| Approvals | CE, cULus E54633 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
