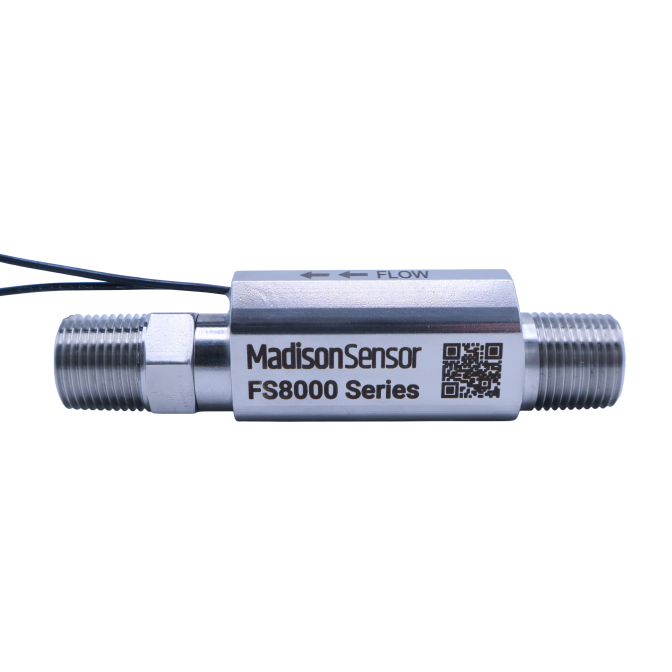

FS8000-10002 Stainless Steel NPT 0.15 GPM Flow Switch
High-precision stainless-steel flow switch with durable SPST control and industrial-grade reliability.
Clog-resistant Ryton® piston
Durable 316 SS body
High-pressure SPST switching
The FS8000-10002 Stainless Steel NPT Flow Switch delivers precise flow detection at 0.15 GPM, engineered for tough industrial environments. Built with a clog-resistant Ryton® R4 piston, Viton O-ring, and sturdy 316 stainless steel housing, it withstands up to 1500 PSI and temperatures ranging from –20 °F to 275 °F. With ±20 % set point accuracy, CE and cULus approvals, and a low-pressure drop design, it’s ideal for cooling systems, chemical dosing, and OEM machinery. MadisonSensor prefers quote requests for accurate pricing and spec validation, and offers tailored solutions on demand.
| Orientation | Horizontal or Vertical |
|---|---|
| Housing Material | 316 Stainless Steel |
| Mounting Type & Size | 3/8" NPT |
| Flow Setting (GPM) | 0.15 |
| Flow Setting (LPM) | 0.57 |
| Set Point Accuracy | +/- 20% |
| Spring Material | 302 Stainless Steel |
| Piston Material | Ryton R4 |
| Switch Rating | 20 WATT SPST |
| Electrical Ratings | 120 VAC, 0.12A; 100 VDC, 0.10A; 24 VDC, 0.30A; 12 VDC, 0.30A |
| Temperature (Max-Celsius) | 135 |
| Temperature (Max-Fahrenheit) | 275 |
| Temperature (Min-Celsius) | -29 |
| Temperature (Min-Fahrenheit) | -20 |
| Maximum Pressure (BAR) | 103 |
| Maximum Pressure (PSI) | 1500 |
| Electrical Termination | 24", 22 AWG, Teflon insulated |
| Approvals | CE, cULus E54633 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
