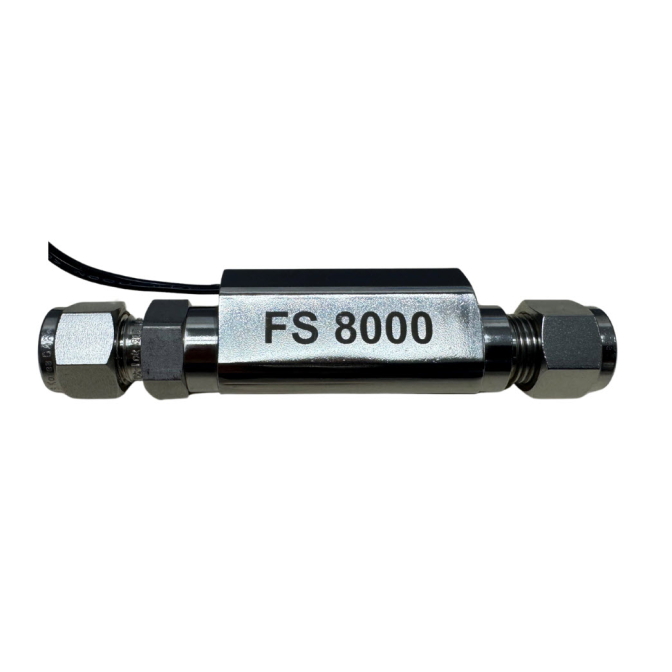

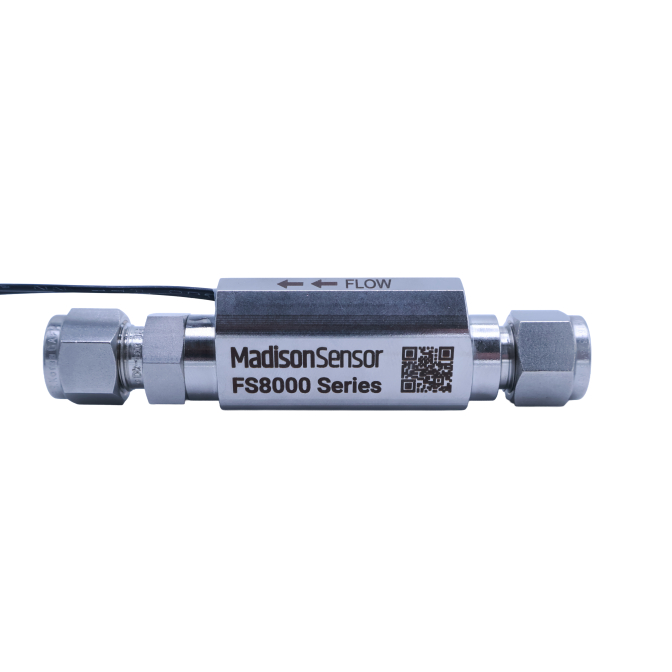

FS8000-20002 Stainless Steel Compression 0.15 GPM Flow Switch
$347.00
SKU:
FS8000-20002
Lead Time5 Business Days
Durable stainless flow switch with clog-resistant piston offering accurate 0.15 GPM detection.
Clog-resistant Ryton® R4 piston
Rugged 316 SS compression housing
Compact 0.15 GPM SPST detection
The FS8000-20002 Stainless Steel Compression Flow Switch provides precise 0.15 GPM flow monitoring in high-pressure lines. Featuring a clog-resistant Ryton® R4 piston and robust 316 stainless steel construction, it withstands up to 1,500 PSI and operates reliably between –20 °F and 275 °F. Equipped with SPST switching, CE and cULus approvals, compact 3/8″ compression fitting design, and one-year warranty, it’s ideal for OEM systems, coolant loops, and fluid handling setups. MadisonSensor prefers quote requests to verify pricing and technical specifications and offers tailored solutions as needed.
| Orientation | Horizontal or Vertical |
|---|---|
| Housing Material | 316 Stainless Steel |
| Mounting Type & Size | 3/8" Compression Fitting |
| Flow Setting (GPM) | 0.15 |
| Flow Setting (LPM) | 0.57 |
| Set Point Accuracy | +/- 20% |
| Spring Material | 302 Stainless Steel |
| Piston Material | Ryton R4 |
| Switch Rating | 20 WATT SPST |
| Electrical Ratings | 120 VAC, 0.12A; 100 VDC, 0.10A; 24 VDC, 0.30A; 12 VDC, 0.30A |
| Temperature (Max-Celsius) | 135 |
| Temperature (Max-Fahrenheit) | 275 |
| Temperature (Min-Celsius) | -29 |
| Temperature (Min-Fahrenheit) | -20 |
| Maximum Pressure (BAR) | 103 |
| Maximum Pressure (PSI) | 1500 |
| Electrical Termination | 24", 22 AWG, Teflon insulated |
| Approvals | CE, cULus E54633 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
