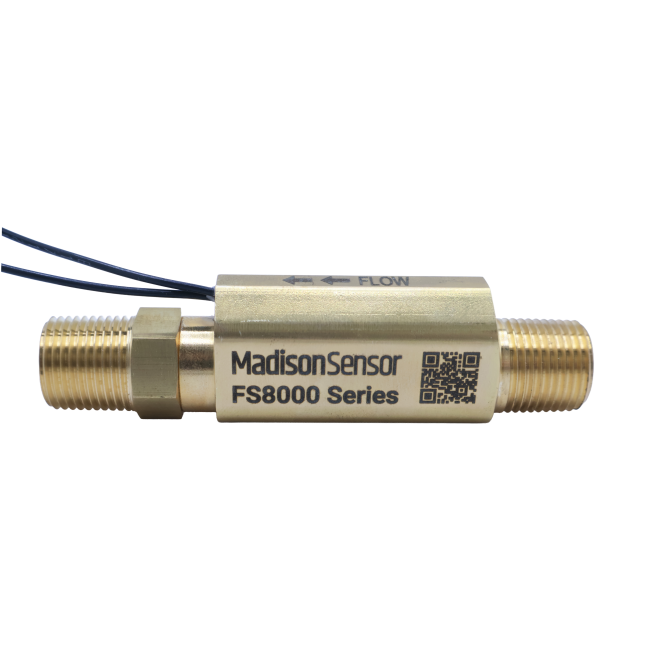

FS8000-15002 Brass NPT 0.15 GPM Flow Switch
Brass housing flow switch with clog-resistant piston for accurate 0.15 GPM detection.
Clog-resistant Ryton® piston
Compact brass body and 0.15 GPM sensitivity
Efficient SPST switching with ±20% accuracy
- Buy 10 for $132.05 each and save 5%
- Buy 25 for $125.10 each and save 10%
- Buy 100 for $118.15 each and save 15%
The FS8000-15002 Brass NPT Flow Switch delivers reliable 0.15 GPM flow detection in compact systems, featuring a clog-resistant Ryton® R4 piston and durable brass housing. With a versatile horizontal/vertical orientation and multi-voltage compatibility, it performs under pressures up to 1,500 PSI and temperatures to 275 °F. CE and cULus approved with a 1-year warranty and 5-day lead time, it’s ideal for HVAC loops, OEM units, and fluid monitoring setups. MadisonSensor prefers quote requests for price and spec confirmation and offers custom solutions tailored to your application.
| Orientation | Horizontal or Vertical |
|---|---|
| Housing Material | Brass |
| Mounting Type & Size | 3/8" NPT |
| Flow Setting (GPM) | 0.15 |
| Flow Setting (LPM) | 0.57 |
| Set Point Accuracy | +/- 20% |
| Spring Material | 302 Stainless Steel |
| Piston Material | Ryton R4 |
| Switch Logic | Normally Open |
| Switch Rating | 20 WATT SPST |
| Electrical Ratings | 120 VAC, 0.12A; 100 VDC, 0.10A; 24 VDC, 0.30A; 12 VDC, 0.30A |
| Temperature (Max-Celsius) | 135 |
| Temperature (Max-Fahrenheit) | 275 |
| Maximum Pressure (BAR) | 103 |
| Maximum Pressure (PSI) | 1500 |
| Electrical Termination | 24", 22 AWG, Teflon insulated |
| Approvals | CE, cULus E54633 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
