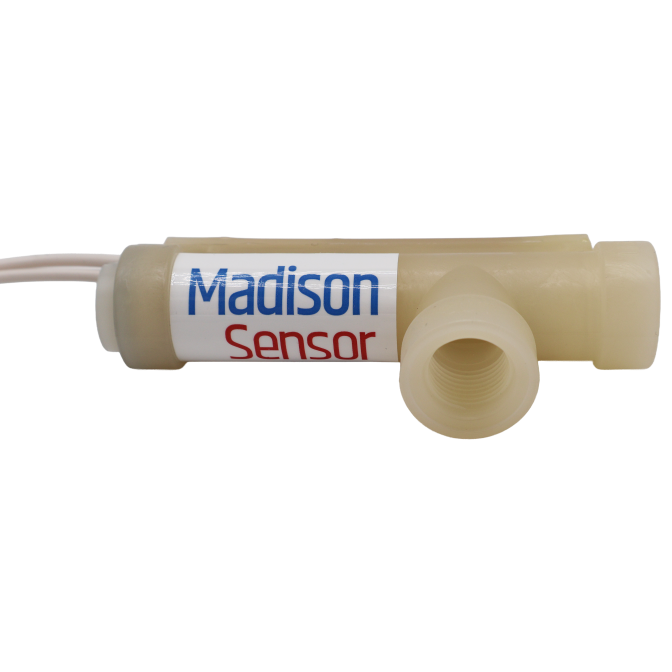

FS4000-K010 Kynar (PVDF), 0.10 GPM Flow Switch
$199.00
SKU:
FS4000-K010
Lead Time20 Business Days
Flow Switch offering clog-resistant SPST control and OEM-grade reliability.
Durable Kynar (PVDF) housing for rugged reliability
Clog-resistant piston ensures consistent performance
Accurate SPST switching with ±20 % setpoint precision
The FS4000 Flow Switch delivers precise flow detection under tough conditions. Built with a clog-resistant piston, Kynar (PVDF) housing, and sealed components, it operates reliably in environments from up to 194°F and handles pressures up to 200 PSI. With ±20 % flow accuracy, SPST switching, multi-voltage compatibility, it’s ideal for cooling systems, chemical dosing, or OEM integration. MadisonSensor prefers quote requests to confirm pricing and technical specs, and offers custom solutions to meet your application needs.
| Orientation | Horizontal or Vertical |
|---|---|
| Housing Material | Kynar (PVDF) |
| Mounting Type & Size | 9/16-18 UNF Female Threads |
| Flow Setting (GPM) | 0.10 |
| Flow Setting (LPM) | 0.38 |
| Spring Material | Titanium |
| Switch Logic | Normally Open |
| Switch Rating | 50 WATT SPST |
| Electrical Ratings | 120 VAC, 0.5A; 12 VDC, 0.70A |
| Temperature (Max-Celsius) | 90 |
| Temperature (Max-Fahrenheit) | 194 |
| Maximum Pressure (BAR) | 14 |
| Maximum Pressure (PSI) | 200 |
| Electrical Termination | 24", 20 AWG MTW Leads |
| Lead Time | 20 Business Days |
| Warranty | 1 Year |
