ML8888 Single or Multi-Point Level Switch Kit (1 or 2 switch points)
Customizable polypropylene multi-point float switch kit for reliable level detection.
Modular 2" NPT vertical configuration
Field-selectable SPST logic (normally open or closed)
Lightweight polypropylene components for corrosion resistance

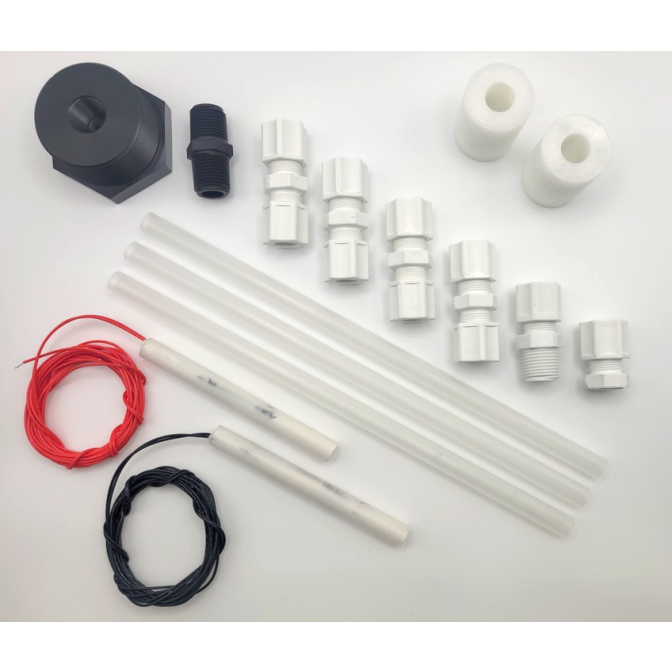

The ML8888 Level Switch Kit enables in-field assembly of one or two float switch points using corrosion-resistant polypropylene construction. With field-configurable SPST logic (Normally Open or Closed), it's ideal for flexible level monitoring in lower-temperature systems—rated up to 221 °F and 100 psi. This modular design is perfect for chemical, food, or general-purpose equipment requiring custom fluid-level thresholds. MadisonSensor prefers quote requests to confirm pricing and specifications, and offers tailored solutions upon request.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 2" NPT |
| Float Material | Polypropylene |
| Stem Material | Polypropylene |
| Switch Logic | Normally Open, Normally Closed |
| Switch Rating | 60 WATT SPST |
| Electrical Ratings | 240V AC, 0.40A; 120V AC, 0.50A; 120V DC, 0.20A; 24V DC, 0.50A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Minimum Media SG | 0.94 |
| Electrical Termination | 22 AWG, Teflon insulated |
| Float Diameter | 1.5" |
| Slosh Shield | No |
| Approvals | CE |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
