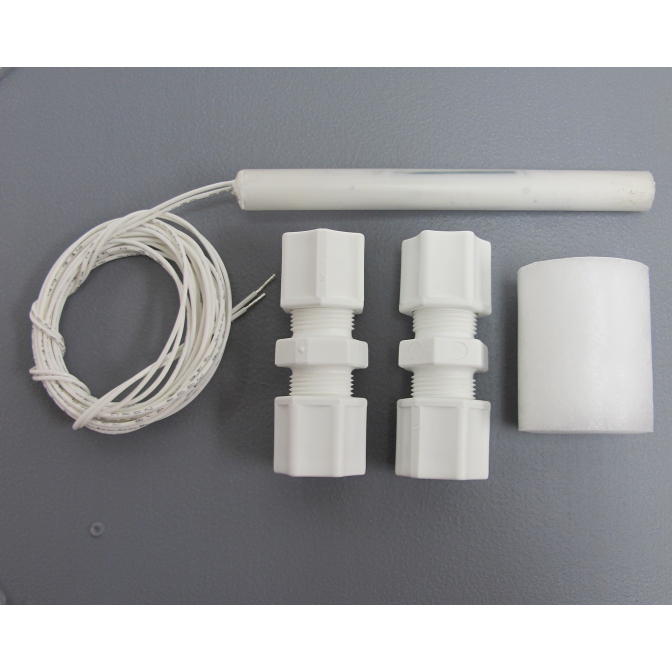

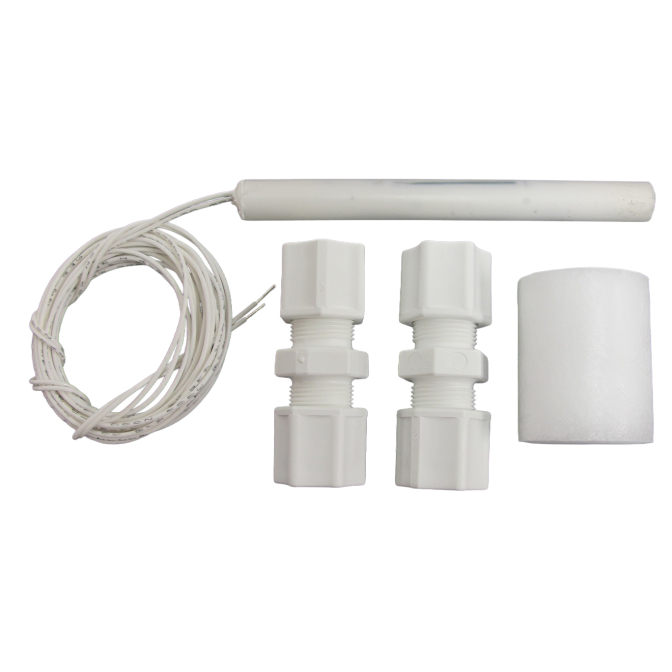

ML8888-LVL3, 3rd Level for ML8888, White Leads
Adds a third polypropylene float level to the ML8888 system
60 W SPST switch, configurable as normally open or closed
Rated for 221 °F / 100 PSI
The ML8888-LVL3 extends your ML8888 multi-point float switch system with an additional polypropylene sensor, complete with pre-wired white Teflon-insulated leads for straightforward installation. This SPST switch is field-configurable between normally open and closed logic and is engineered to perform up to 221 °F (105 °C) and 100 PSI. Suitable for fluids with specific gravity above 0.94 and CE-certified for reliable performance, this kit ships within one business day and includes a one-year warranty. MadisonSensor recommends requesting a quote to confirm current pricing and specifications and is ready to support custom configurations if needed.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Float Material | Polypropylene |
| Stem Material | Polypropylene |
| Switch Logic | Normally Open, Normally Closed |
| Switch Rating | 60 WATT SPST |
| Electrical Ratings | 240V AC, 0.40A; 120V AC, 0.50A; 120V DC, 0.20A; 24V DC, 0.50A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Minimum Media SG | 0.94 |
| Electrical Termination | 22 AWG, Teflon insulated |
| Float Diameter | 1.5" |
| Slosh Shield | No |
| Approvals | CE |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
