ML8888-LVL4, 4th Level for ML8888, Blue Leads
Polypropylene fourth-level float kit for ML8888 systems—configurable logic, high-temp/pressure rated, in stock.

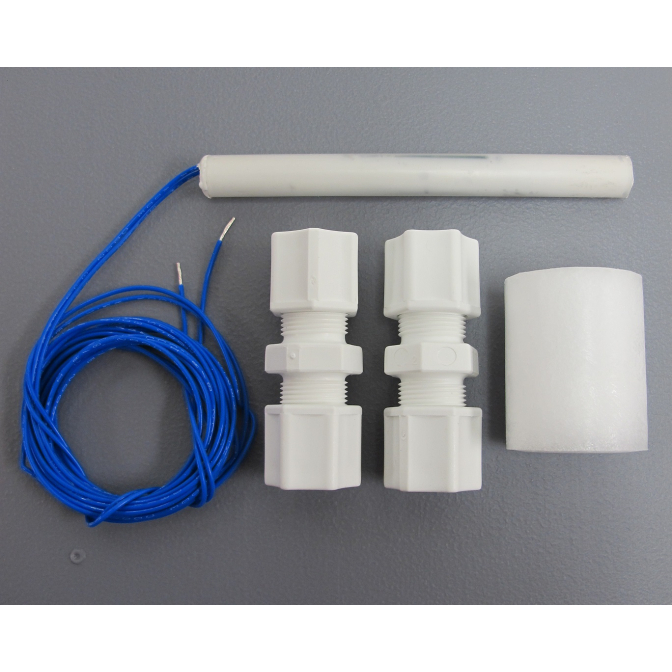

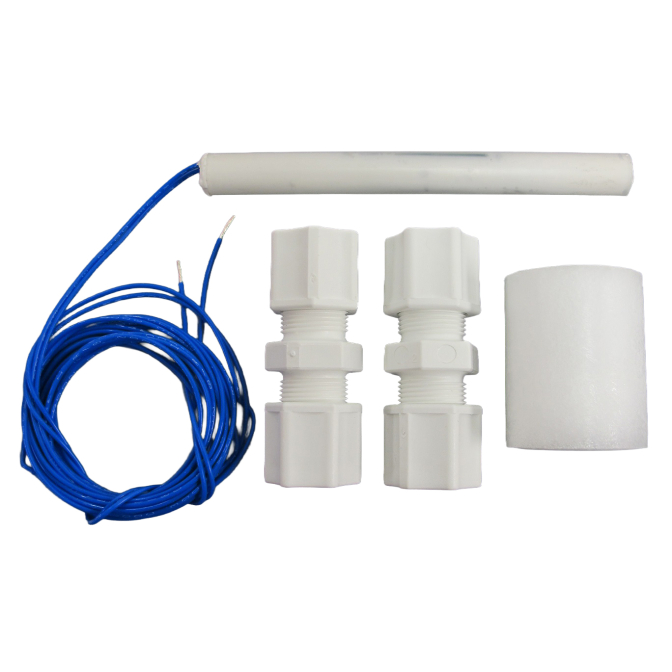

Adds a fourth polypropylene float level to the ML8888 system
60 W SPST switch, configurable as normally open or closed
Rated for 221 °F and 100 PSI, with fast 1-day availability
The ML8888-LVL4 kit enables expansion of your ML8888 multi-point level switch system with a fourth detection float. Featuring a durable polypropylene body and stem with pre-wired blue Teflon-insulated leads, this SPST switch is user-configurable for normally open or closed logic. Engineered for use in demanding applications, it supports temperatures up to 221 °F (105 °C), pressures up to 100 PSI, and requires a minimum fluid specific gravity of 0.94. CE-certified and backed by a 1-year warranty, this kit is stocked for next-business-day delivery. MadisonSensor recommends requesting a quote to confirm real-time pricing and specifications and offers customized configurations if needed.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Float Material | Polypropylene |
| Stem Material | Polypropylene |
| Switch Logic | Normally Open, Normally Closed |
| Switch Rating | 60 WATT SPST |
| Electrical Ratings | 240V AC, 0.40A; 120V AC, 0.50A; 120V DC, 0.20A; 24V DC, 0.50A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Minimum Media SG | 0.94 |
| Electrical Termination | 22 AWG, Teflon insulated |
| Float Diameter | 1.5" |
| Slosh Shield | No |
| Approvals | CE |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
