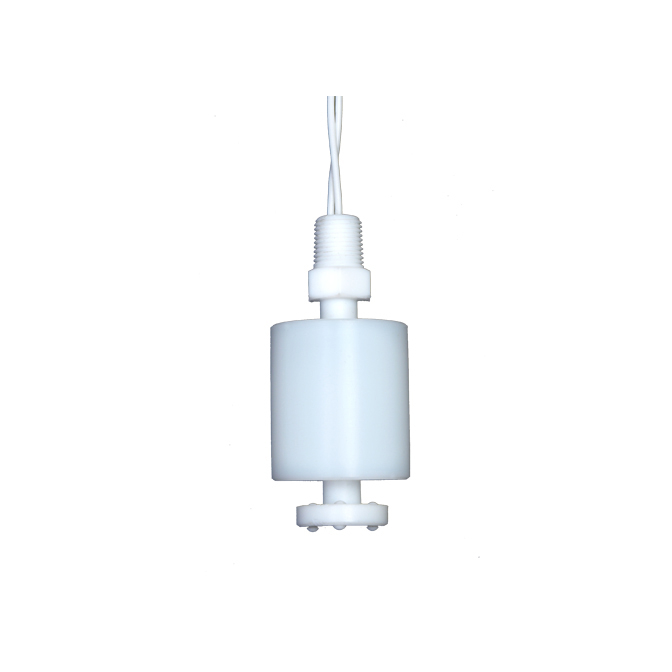

M9200-NO Float Switch (Normally Open)
Compact Teflon float switch with Normally Open logic for high-purity level control.
Chemically resistant Teflon construction
Compact 1/8″ NPT vertical mount
SPST switch with normally open logic
The M9200-NO Float Switch (Normally Open) features a Teflon stem and float, offering exceptional chemical resistance for demanding industrial applications. Its Normally Open SPST switch logic operates reliably up to 300 °F and 25 psi, making it an excellent choice for corrosive, high-purity, or sticky-fluid environments. Approved by CE and backed by a one-year warranty, this compact switch is trusted by OEMs in food processing, sterilization, and precision instrument systems. MadisonSensor prefers quote requests to confirm pricing and specifications and offers custom solutions tailored to your application needs.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/8" NPT |
| Float Material | Teflon |
| Stem Material | Teflon |
| Switch Logic | Normally Open |
| Switch Rating | 60 WATT SPST |
| Electrical Ratings | 240V AC, 0.40A; 120V AC, 0.50A; 120V DC, 0.20A; 24V DC, 0.50A |
| Temperature (Max-Celsius) | 150 |
| Temperature (Max-Fahrenheit) | 300 |
| Maximum Pressure (BAR) | 2 |
| Maximum Pressure (PSI) | 25 |
| Minimum Media SG | 0.86 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Float Diameter | 1.12" |
| Slosh Shield | No |
| Approvals | CE |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
