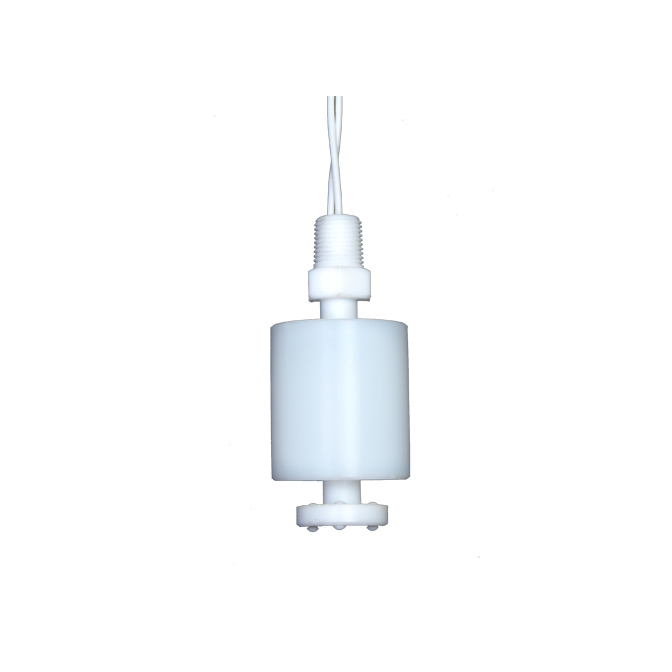

M9200 Float Switch (Normally Closed)
$396.00
SKU:
M9200
Lead Time5 Business Days
High-purity Teflon float switch for dependable, corrosive-resistant level detection.
Chemically resistant Teflon construction
Compact 1/8″ NPT vertical mount
Durable 60 W SPST switch
The M9200 Float Switch (Normally Closed) delivers reliable single-point level detection through its Teflon stem and float, making it ideal for corrosive and high-purity environments. Rated for temperatures up to 300 °F and pressures up to 25 psi, it ensures dependable performance in demanding industrial, chemical, or food-grade applications. With CE and NSF/ANSI 169 approvals and a 1-year warranty, it's a trusted choice among OEMs. MadisonSensor prefers quote requests to confirm pricing and specifications and offers custom solutions tailored to your needs.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/8" NPT |
| Float Material | Teflon |
| Stem Material | Teflon |
| Switch Logic | Normally Closed |
| Switch Rating | 60 WATT SPST |
| Electrical Ratings | 240V AC, 0.40A; 120V AC, 0.50A; 120V DC, 0.20A; 24V DC, 0.50A |
| Temperature (Max-Celsius) | 150 |
| Temperature (Max-Fahrenheit) | 300 |
| Maximum Pressure (BAR) | 2 |
| Maximum Pressure (PSI) | 25 |
| Minimum Media SG | 0.86 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Float Diameter | 1.12" |
| Slosh Shield | No |
| Approvals | CE, NSF/ANSI 169 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
