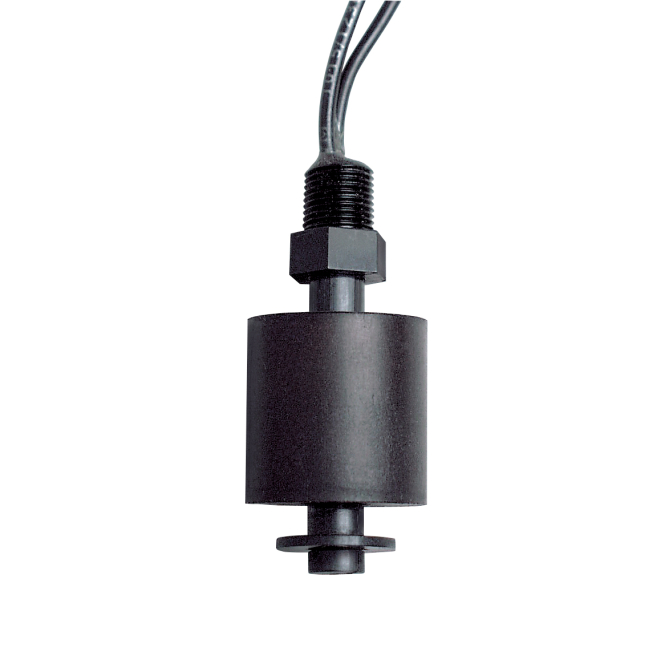

M7000-NO Single Point Level Switch (Normally Open)
Compact Buna-N float switch, normally-open SPST logic, rated to 221 °F/150 PSI, with 5-day lead time.
Buna-N float with PBT stem
Normally-open SPST logic
Fast 5-day delivery with key approvals
The M7000-NO is a compact, vertically mounted single-point float switch featuring a chemically resistant Buna-N float and a durable PBT stem. Its normally open SPST action ensures reliable fail-safe operation and it supports up to 221 °F and 150 PSI in demanding environments. Certified to CE, CSA, and UL standards, and compliant with Proposition 65, this switch offers both performance and peace of mind. MadisonSensor recommends requesting a quote to confirm current pricing and specifications, and is ready to deliver custom solutions tailored to your needs.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/8" NPT |
| Float Material | Buna-N |
| Stem Material | PBT |
| Switch Logic | Normally Open |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 11 |
| Maximum Pressure (PSI) | 150 |
| Minimum Media SG | 0.56 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Float Diameter | 1" |
| Slosh Shield | No |
| Approvals | CE, CSA LR56150, cULus E54633, Prop 65 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
