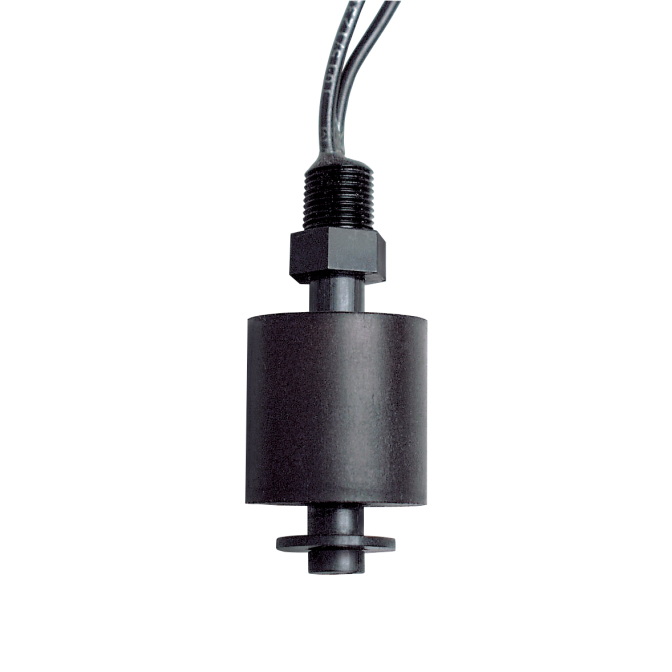

M7000 Single Point Level Switch (Normally Closed)
Compact Buna-N float switch (NC SPST), 150 PSI/221 °F rated, 1-day delivery, packed with approvals.
Compact Buna-N float with PBT stem
Studio-rated 30 W SPST switch (NC logic)
Fast 1-day lead time, broad certification
- Buy 50 for $22.80 each and save 5%
- Buy 100 for $21.60 each and save 10%
- Buy 250 for $20.40 each and save 15%
The M7000 Single Point Level Switch is a compact and reliable liquid level sensor, tailored for vertical mounting in tight spaces. Featuring a durable PBT stem and chemically resistant Buna-N float, it delivers dependable normally-closed SPST functionality. Rated for temperatures up to 221 °F and pressures up to 150 PSI, it also carries approvals from CE, CSA, cULus, Prop 65, and Florida DEP—making it highly suitable for multiple industrial applications. MadisonSensor recommends requesting a quote for current pricing and specifications and is prepared to provide OEM-customized solutions.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/8" NPT |
| Float Material | Buna-N |
| Stem Material | PBT |
| Switch Logic | Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 11 |
| Maximum Pressure (PSI) | 150 |
| Minimum Media SG | 0.56 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Float Diameter | 1" |
| Slosh Shield | No |
| Approvals | CE, CSA LR56150, cULus E54633, Prop 65, Florida DEP EQ682 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
