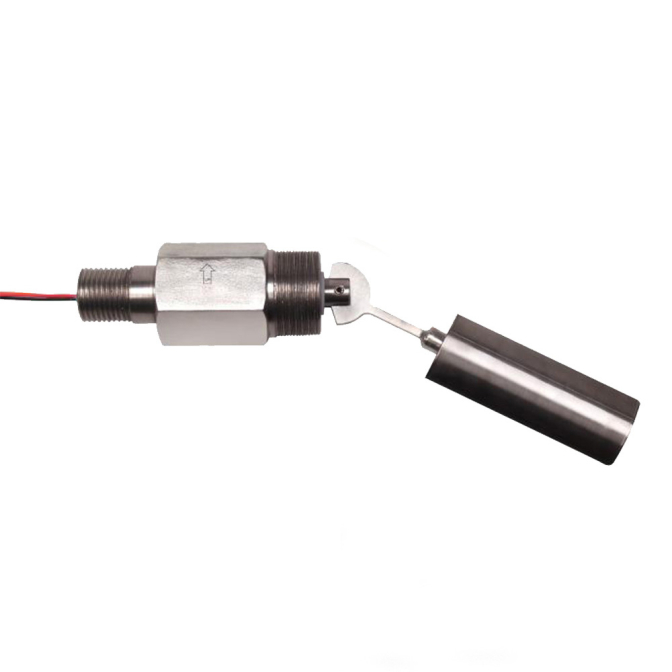

M4190 Side Mount Heavy Duty Float Switch
$362.00
SKU:
M4190
Lead Time1 Business Day
Heavy-duty stainless steel float switch delivers precise, adaptable level detection.
Durable 304 SS construction
Handles up to 150 psi pressure
Supports both NO/NC switch logic
- Buy 10 for $343.90 each and save 5%
- Buy 25 for $325.80 each and save 10%
- Buy 100 for $307.70 each and save 15%
The M4190 Side Mount Heavy Duty Float Switch provides reliable liquid level control with robust 304 stainless steel construction and a wide temperature tolerance. Industrial operators benefit from trustworthy performance in horizontal installations up to 150 PSI. Its versatility with normally open or closed switch logic and quick one-day lead time make it ideal for demanding applications. MadisonSensor prefers quote requests for price or specification confirmation and offers custom solutions tailored to your needs.
| Sensor Type | Float |
|---|---|
| Orientation | Horizontal |
| Mounting Type & Size | 1" NPT |
| Float Material | 304 Stainless Steel |
| Stem Material | 304 Stainless Steel |
| Switch Logic | Normally Open, Normally Closed |
| Switch Rating | 100 WATT SPDT |
| Electrical Ratings | 240 VAC, 0.14A; 120 VAC, 0.28A; 120 VDC, 0.07A; 24 VDC, 0.28A |
| Temperature (Max-Celsius) | 150 |
| Temperature (Max-Fahrenheit) | 302 |
| Maximum Pressure (BAR) | 11 |
| Maximum Pressure (PSI) | 150 |
| Minimum Media SG | 0.73 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Float Diameter | 1" |
| Slosh Shield | No |
| Approvals | CE |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
