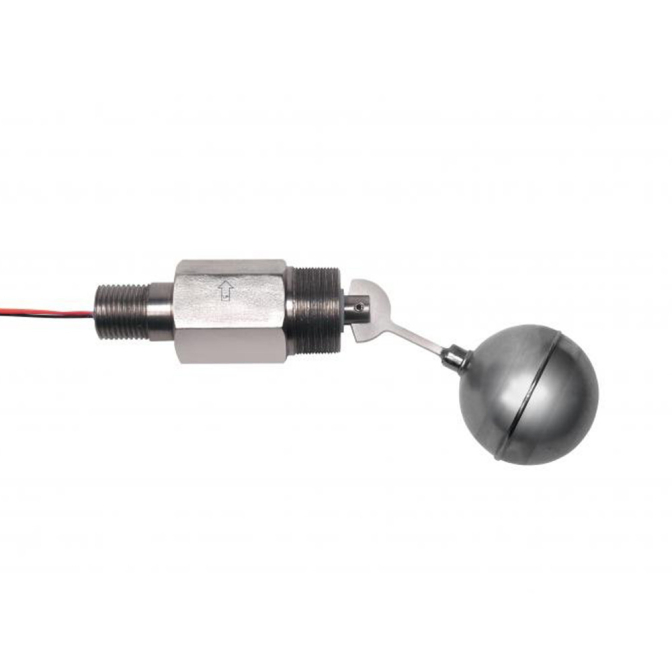

M4190-HP Side Mount Heavy Duty Float Switch
$430.00
SKU:
M4190-HP
Lead Time1 Business Day
High-pressure stainless steel float switch engineered for reliability and flexibility.
304 SS for rugged durability
Handles up to 900 psi pressure
Dual SPDT logic options available
The M4190-HP Side Mount Heavy Duty Float Switch delivers robust horizontal level control with stainless steel construction and an impressive 900 psi pressure rating. Its dual SPDT logic offers flexible normally open or closed switching to suit diverse industrial needs. Backed by a one-year warranty and just one-day lead time, it ensures dependable deployment even under demanding conditions. MadisonSensor prefers quote requests for price or specification confirmation and can provide custom solutions tailored to your requirements.
| Sensor Type | Float |
|---|---|
| Orientation | Horizontal |
| Mounting Type & Size | 1" NPT |
| Float Material | 304 Stainless Steel |
| Stem Material | 304 Stainless Steel |
| Switch Logic | Normally Open, Normally Closed |
| Switch Rating | 100 WATT SPDT |
| Electrical Ratings | 240 VAC, 0.14A; 120 VAC, 0.28A; 120 VDC, 0.07A; 24 VDC, 0.28A |
| Temperature (Max-Celsius) | 150 |
| Temperature (Max-Fahrenheit) | 302 |
| Maximum Pressure (BAR) | 62 |
| Maximum Pressure (PSI) | 900 |
| Minimum Media SG | 0.63 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Float Diameter | 2.04" |
| Slosh Shield | No |
| Approvals | CE |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
