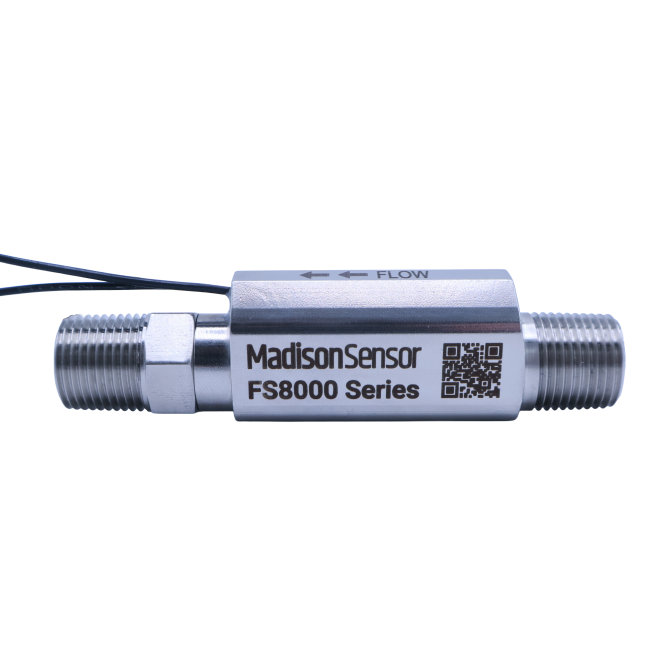

FS8000-10009 Stainless Steel NPT 2.50 GPM Flow Switch
Reliable stainless-steel flow switch with 2.5 GPM capacity, SPST control, and high-pressure durability.
Clog-resistant Ryton® R4 piston
Robust 316 SS housing resists corrosion
Precise Normally-Open SPST switching
- Buy 10 for $320.15 each and save 5%
- Buy 25 for $303.30 each and save 10%
- Buy 100 for $286.45 each and save 15%
The FS8000-10009 Stainless Steel NPT Flow Switch offers reliable 2.50 GPM flow detection for high-pressure industrial environments. Engineered with a clog-resistant Ryton® R4 piston and durable 316 stainless steel housing, it exceeds expectations under temperatures from –20 °F to 275 °F and withstands pressure up to 1,500 PSI. With ±10 % accuracy, Normally-Open SPST switching, multiple voltage compatibilities, and UL recognition pending, it's ideal for cooling systems, chemical dosing, and OEM integration. MadisonSensor recommends quote requests to confirm pricing and technical details—and can deliver custom configurations to meet your requirements.
| Orientation | Horizontal or Vertical |
|---|---|
| Housing Material | 316 Stainless Steel |
| Mounting Type & Size | 3/8" NPT |
| Flow Setting (GPM) | 2.50 |
| Flow Setting (LPM) | 9.46 |
| Set Point Accuracy | +/- 10% |
| Spring Material | 302 Stainless Steel |
| Piston Material | Ryton R4 |
| Switch Logic | Normally Open |
| Switch Rating | 20 WATT SPST |
| Electrical Ratings | 120 VAC, 0.12A; 100 VDC, 0.10A; 24 VDC, 0.30A; 12 VDC, 0.30A |
| Temperature (Max-Celsius) | 135 |
| Temperature (Max-Fahrenheit) | 275 |
| Temperature (Min-Celsius) | -29 |
| Temperature (Min-Fahrenheit) | -20 |
| Maximum Pressure (BAR) | 103 |
| Maximum Pressure (PSI) | 1500 |
| Electrical Termination | 24", 22 AWG, Teflon insulated |
| Approvals | CE, cULus E54633 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
