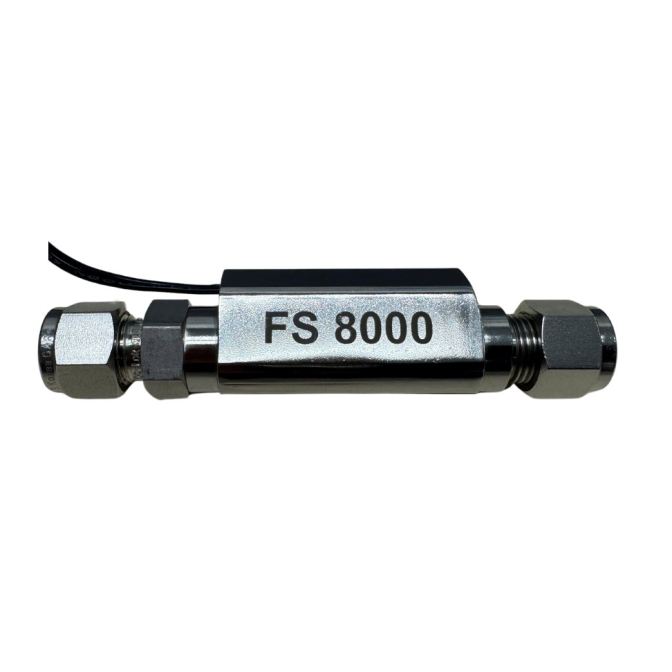

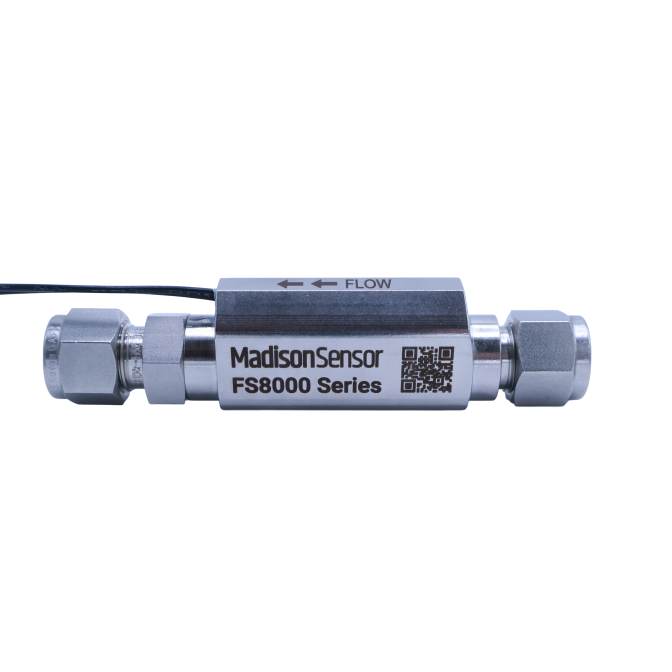

FS8000-20009 Stainless Steel Compression 2.50 GPM Flow Switch
$347.00
SKU:
FS8000-20009
Lead Time5 Business Days
Heavy-duty stainless-steel flow switch delivering 2.50 GPM precision with clog-resistant performance.
Clog-resistant Ryton® R4 piston
Rugged 316 SS compression fitting
Precise 2.50 GPM SPST switching
The FS8000-20009 Stainless Steel Compression Flow Switch delivers accurate 2.50 GPM flow detection in high-pressure industrial systems. Crafted with a clog-resistant Ryton® R4 piston and corrosion-resistant 316 stainless steel housing, it withstands pressures up to 1,500 PSI and temperature extremes from –20 °F to 275 °F. Featuring SPST switching, CE and cULus certifications, low-pressure-drop design, and backed by a one-year warranty, it excels in cooling systems, OEM machinery, and process fluid control. MadisonSensor prefers quote requests to accurately confirm specification and pricing and stands ready to offer tailored engineering solutions.
| Orientation | Horizontal or Vertical |
|---|---|
| Housing Material | 316 Stainless Steel |
| Mounting Type & Size | 3/8" Compression Fitting |
| Flow Setting (GPM) | 2.50 |
| Flow Setting (LPM) | 9.46 |
| Set Point Accuracy | +/- 10% |
| Spring Material | 302 Stainless Steel |
| Piston Material | Ryton R4 |
| Switch Rating | 20 WATT SPST |
| Electrical Ratings | 120 VAC, 0.12A; 100 VDC, 0.10A; 24 VDC, 0.30A; 12 VDC, 0.30A |
| Temperature (Max-Celsius) | 135 |
| Temperature (Max-Fahrenheit) | 275 |
| Temperature (Min-Celsius) | -29 |
| Temperature (Min-Fahrenheit) | -20 |
| Maximum Pressure (BAR) | 103 |
| Maximum Pressure (PSI) | 1500 |
| Electrical Termination | 24", 22 AWG, Teflon insulated |
| Approvals | CE, cULus E54633 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
