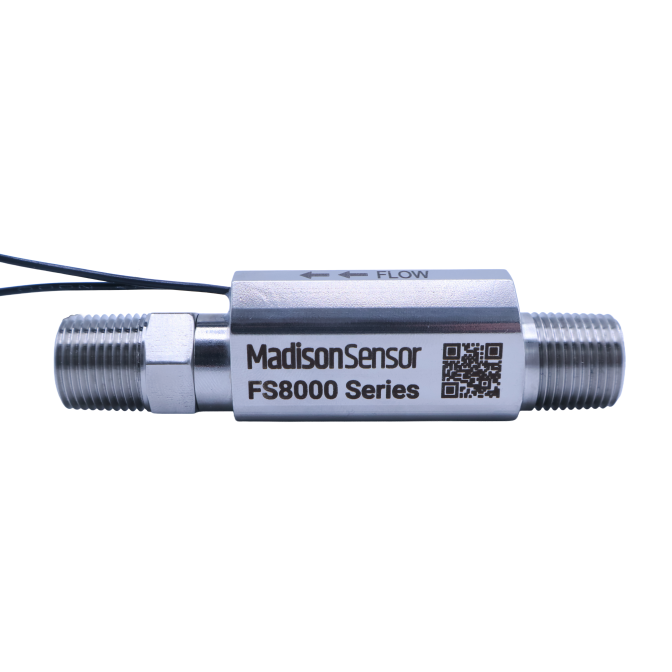

FS8000-10008 Stainless Steel NPT 2.00 GPM Flow Switch
High-pressure stainless-steel flow switch with SPST control, accurate performance, and clog-resistant Ryton piston.
Clog-resistant Ryton® R4 piston
Rugged 316 SS housing for harsh environments
Precise SPST switching under high pressure
The FS8000-10008 Stainless Steel NPT Flow Switch offers dependable flow detection at 2.00 GPM in demanding industrial settings. Featuring a clog-resistant Ryton® R4 piston, Viton-sealed components, and robust 316 stainless steel housing, it handles pressure up to 1,500 PSI and temperature ranges from –20 °F to 275 °F. With ±10 % accuracy, SPST switching, and CE/cULus approvals, it serves perfectly in cooling systems, chemical dosing, and OEM equipment. MadisonSensor prefers quote requests for pricing and specification confirmation and provides tailored solutions on demand.
| Orientation | Horizontal or Vertical |
|---|---|
| Housing Material | 316 Stainless Steel |
| Mounting Type & Size | 3/8" NPT |
| Flow Setting (GPM) | 2.00 |
| Flow Setting (LPM) | 7.57 |
| Set Point Accuracy | +/- 10% |
| Spring Material | 302 Stainless Steel |
| Piston Material | Ryton R4 |
| Switch Rating | 20 WATT SPST |
| Electrical Ratings | 120 VAC, 0.12A; 100 VDC, 0.10A; 24 VDC, 0.30A; 12 VDC, 0.30A |
| Temperature (Max-Celsius) | 135 |
| Temperature (Max-Fahrenheit) | 275 |
| Temperature (Min-Celsius) | -29 |
| Temperature (Min-Fahrenheit) | -20 |
| Maximum Pressure (BAR) | 103 |
| Maximum Pressure (PSI) | 1500 |
| Electrical Termination | 24", 22 AWG, Teflon insulated |
| Approvals | CE, cULus E54633 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
