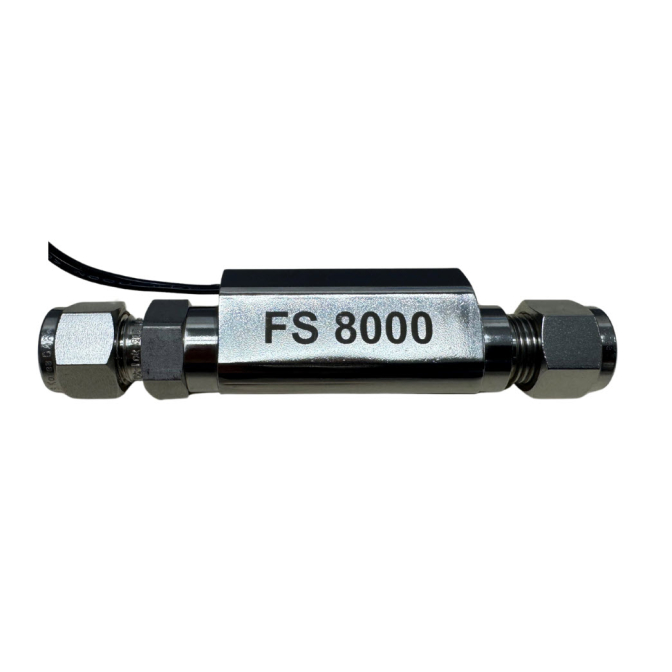

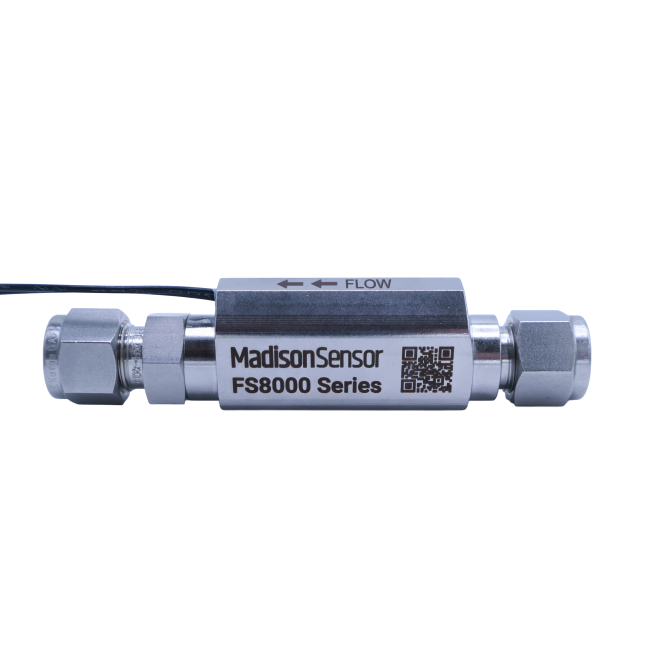

FS8000-20008 Stainless Steel Compression 2.00 GPM Flow Switch
Heavy-duty stainless-steel flow switch offering clog-resistant piston and precise 2 GPM detection.
Clog-resistant Ryton® R4 piston
Durable 316 SS compression housing
Precise 2 GPM SPST switching
- Buy 10 for $329.65 each and save 5%
- Buy 25 for $312.30 each and save 10%
- Buy 100 for $294.95 each and save 15%
The FS8000-20008 Stainless Steel Compression Flow Switch delivers reliable 2.00 GPM flow monitoring in high-pressure industrial lines. Constructed with a clog-resistant Ryton® R4 piston, Viton O-ring, and epoxy sealing housed in robust 316 stainless steel, it operates flawlessly under pressures up to 1,500 PSI and temperatures from –20 °F to 275 °F. With Normally Open SPST switching, broad voltage compatibility, CE and cULus certifications, and a one-year warranty, this switch is ideal for OEM systems, cooling loops, and high-pressure fluid control. MadisonSensor prefers quote requests for accurate pricing and spec validation and offers customized solutions to meet your precise requirements.
| Orientation | Horizontal or Vertical |
|---|---|
| Housing Material | 316 Stainless Steel |
| Mounting Type & Size | 3/8" Compression Fitting |
| Flow Setting (GPM) | 2.00 |
| Flow Setting (LPM) | 7.57 |
| Set Point Accuracy | +/- 10% |
| Spring Material | 302 Stainless Steel |
| Piston Material | Ryton R4 |
| Switch Logic | Normally Open |
| Switch Rating | 20 WATT SPST |
| Electrical Ratings | 120 VAC, 0.12A; 100 VDC, 0.10A; 24 VDC, 0.30A; 12 VDC, 0.30A |
| Temperature (Max-Celsius) | 135 |
| Temperature (Max-Fahrenheit) | 275 |
| Temperature (Min-Celsius) | -29 |
| Temperature (Min-Fahrenheit) | -20 |
| Maximum Pressure (BAR) | 103 |
| Maximum Pressure (PSI) | 1500 |
| Electrical Termination | 24", 22 AWG, Teflon insulated |
| Approvals | CE, cULus E54633 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
