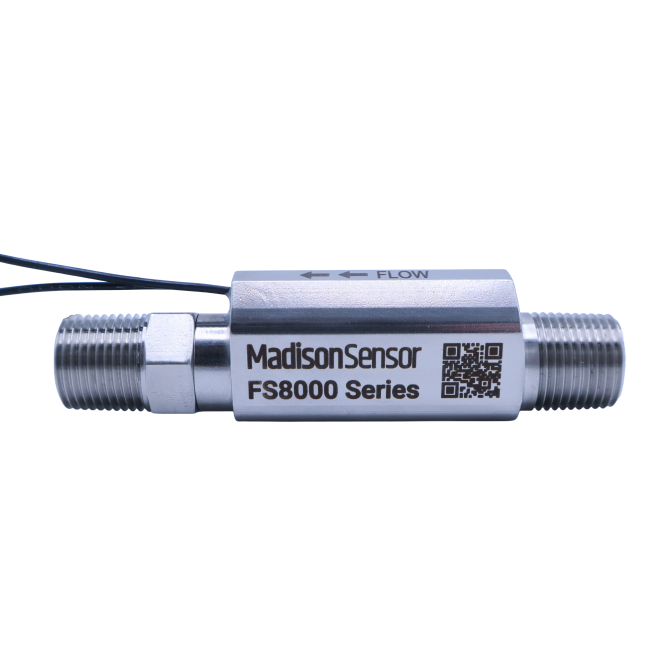

FS8000-10004 Stainless Steel NPT 0.50 GPM Flow Switch
$337.00
SKU:
FS8000-10004
Lead Time1 Business Day
High-pressure stainless-steel flow switch offering precise SPST control and clog-resistant reliability.
Clog-resistant Ryton® R4 piston
Robust 316 SS housing withstands 1,500 PSI
Precise SPST switching with ±10% accuracy
- Buy 10 for $320.15 each and save 5%
- Buy 25 for $303.30 each and save 10%
- Buy 100 for $286.45 each and save 15%
The FS8000-10004 Stainless Steel NPT Flow Switch offers reliable flow detection at 0.50 GPM, engineered for demanding industrial environments. Featuring a clog-resistant Ryton® R4 piston, Viton O-ring seals, and a rugged 316 stainless steel body, it endures temperatures from –20 °F to 275 °F and pressures up to 1,500 PSI. With ±10 % set point accuracy, CE and cULus approvals, and a compact NPT design ideal for cooling systems, chemical dosing, or OEM applications, it’s a trusted choice for engineers. MadisonSensor prefers quote requests to verify price and specifications and can provide custom solutions on request.
| Orientation | Horizontal or Vertical |
|---|---|
| Housing Material | 316 Stainless Steel |
| Mounting Type & Size | 3/8" NPT |
| Flow Setting (GPM) | 0.50 |
| Flow Setting (LPM) | 1.89 |
| Set Point Accuracy | +/- 10% |
| Spring Material | 302 Stainless Steel |
| Piston Material | Ryton R4 |
| Switch Logic | Normally Open |
| Switch Rating | 20 WATT SPST |
| Electrical Ratings | 120 VAC, 0.12A; 100 VDC, 0.10A; 24 VDC, 0.30A; 12 VDC, 0.30A |
| Temperature (Max-Celsius) | 135 |
| Temperature (Max-Fahrenheit) | 275 |
| Temperature (Min-Celsius) | -29 |
| Temperature (Min-Fahrenheit) | -20 |
| Maximum Pressure (BAR) | 103 |
| Maximum Pressure (PSI) | 1500 |
| Electrical Termination | 24", 22 AWG, Teflon insulated |
| Approvals | CE, cULus E54633 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
