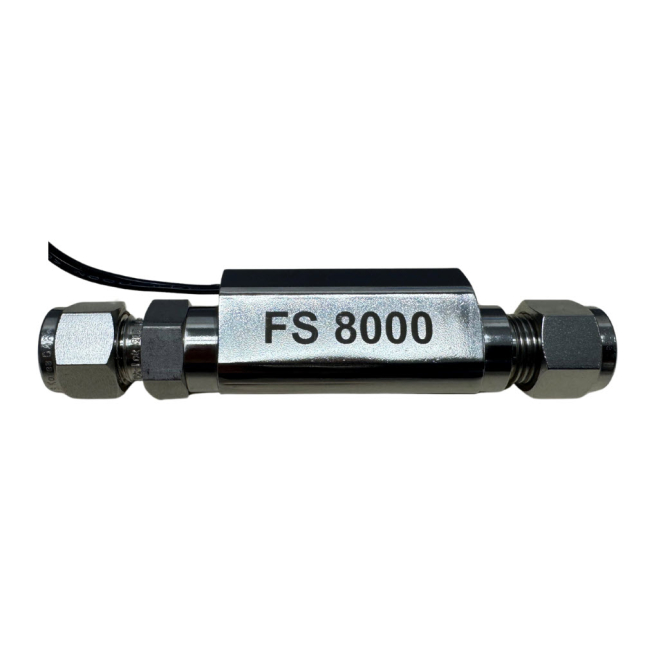

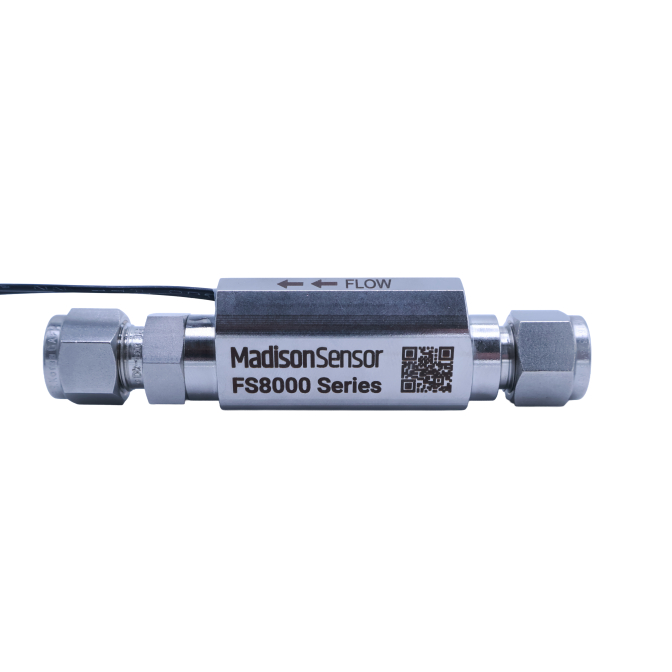

FS8000-20004 Stainless Steel Compression 0.50 GPM Flow Switch
Durable 316 SS compression flow switch with clog-resistant piston and precise 0.50 GPM control.
Clog-resistant Ryton® R4 piston
Rugged 316 SS compression housing
Accurate 0.50 GPM SPST switching
- Buy 10 for $329.65 each and save 5%
- Buy 25 for $312.30 each and save 10%
- Buy 100 for $294.95 each and save 15%
The FS8000-20004 Stainless Steel Compression Flow Switch offers precise 0.50 GPM flow detection ideal for high-pressure systems. Built with a clog-resistant Ryton® R4 piston, Viton sealing, and sturdy 316 stainless steel compression fitting, it withstands up to 1,500 PSI and operates reliably between –20 °F and 275 °F. Its SPST switching capability, CE and cULus certifications, and low-pressure-drop design make it a dependable choice for OEM systems, cooling loops, and fluid control applications. MadisonSensor prefers quote requests for confirming accurate pricing and specifications and stands ready to deliver custom solutions tailored to your needs.
| Orientation | Horizontal or Vertical |
|---|---|
| Housing Material | 316 Stainless Steel |
| Mounting Type & Size | 3/8" Compression Fitting |
| Flow Setting (GPM) | 0.50 |
| Flow Setting (LPM) | 1.89 |
| Set Point Accuracy | +/- 10% |
| Spring Material | 302 Stainless Steel |
| Piston Material | Ryton R4 |
| Switch Logic | Normally Open |
| Switch Rating | 20 WATT SPST |
| Electrical Ratings | 120 VAC, 0.12A; 100 VDC, 0.10A; 24 VDC, 0.30A; 12 VDC, 0.30A |
| Temperature (Max-Celsius) | 135 |
| Temperature (Max-Fahrenheit) | 275 |
| Temperature (Min-Celsius) | -29 |
| Temperature (Min-Fahrenheit) | -20 |
| Maximum Pressure (BAR) | 103 |
| Maximum Pressure (PSI) | 1500 |
| Electrical Termination | 24", 22 AWG, Teflon insulated |
| Approvals | CE, cULus E54633 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
