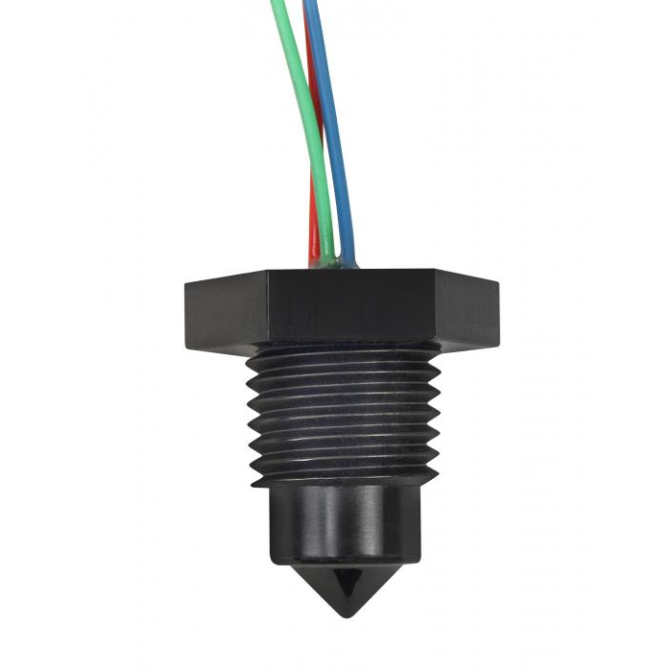

OPT4710-P1 Optical Level Sensor
Small-format optical sensor with wet logic, 257 °F/100 psi rating, and fast availability.
Compact ¼″ NPT optical housing
Current-sink wet sensing logic
High-temperature and pressure durability
The OPT4710-P1 Optical Level Sensor provides precise, single-point liquid detection via current-sink wet optical sensing, housed in a compact ¼″ NPT design suitable for versatile mounting. Built with PTFE-insulated leads and rated for up to 257 °F (125 °C) and 100 psi (7 BAR), it excels in demanding environments. CE-certified and backed by a one-year warranty, this sensor is ready for quick turnaround with a one-business-day lead time. MadisonSensor recommends requesting a quote to confirm pricing and specifications and offers custom-engineered solutions to meet your unique application requirements.
| Sensor Type | Optical |
|---|---|
| Orientation | Horizontal or Vertical |
| Mounting Type & Size | 1/4" NPT |
| Switch Logic | Current Sink Wet |
| Electrical Ratings | 100mA Iout Max |
| Temperature (Max-Celsius) | 125 |
| Temperature (Max-Fahrenheit) | 257 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Electrical Termination | 9.8”, 24 AWG, PTFE insulated |
| Slosh Shield | No |
| Approvals | CE |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
