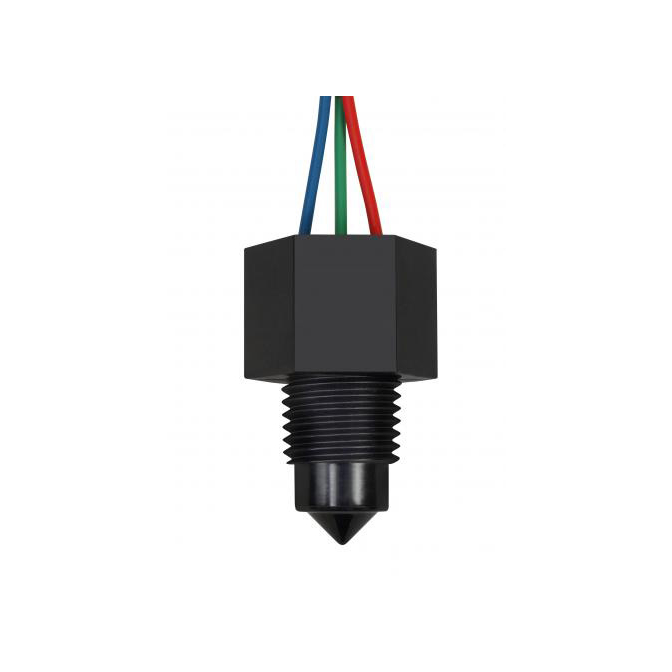

OPT4710-24P1 Optical Level Sensor
Rugged optical sensor with wet current-sink logic for precise level control up to 257 °F and 209 psi.
Compact optical, ¼″ NPT mounting
Current-sink wet sensing logic
High-pressure and temperature resilience
The OPT4710-24P1 Optical Level Sensor offers precise single-point detection using reliable current-sink wet optical technology. Its compact ¼″ NPT housing supports versatile mounting in both horizontal and vertical orientations. Capable of handling temperatures up to 257 °F (125 °C) and pressures up to 209 psi (14 BAR), it combines durability with fast availability—delivered within one business day. CE-certified and backed by a one-year warranty, MadisonSensor recommends requesting a quote to confirm price and specifications and can provide custom-engineered solutions as needed.
| Sensor Type | Optical |
|---|---|
| Orientation | Horizontal or Vertical |
| Mounting Type & Size | 1/4" NPT |
| Switch Logic | Current Sink Wet |
| Electrical Ratings | Iout Max = 100mA |
| Temperature (Max-Celsius) | 125 |
| Temperature (Max-Fahrenheit) | 257 |
| Maximum Pressure (BAR) | 14 |
| Maximum Pressure (PSI) | 209 |
| Electrical Termination | 9.8”, 24 AWG, PTFE insulated |
| Slosh Shield | No |
| Approvals | CE |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
