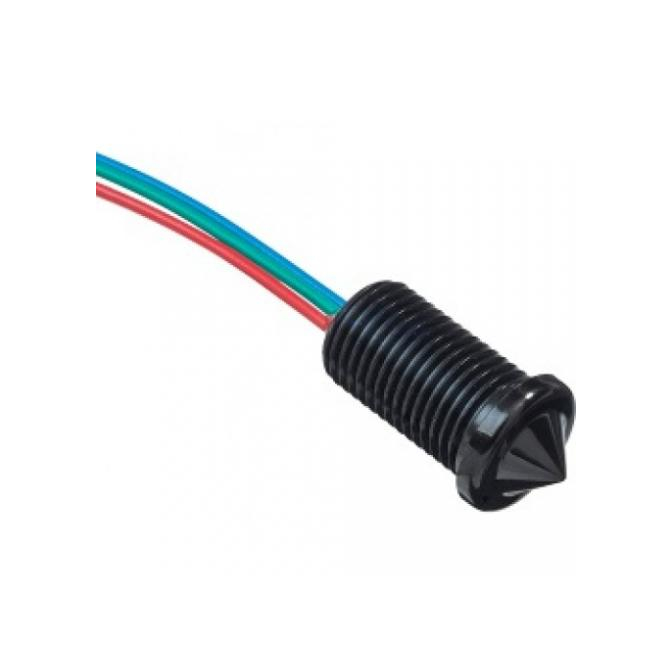

OPT4510-P2 Optical Sensor
$129.00
SKU:
OPT4510-P2
Lead Time55 Business Days
Miniature optical level sensor (M10×1) with dry current-sink logic and 257 °F rating.
Compact M10×1 optical mount
Dry current-sink logic
High-temperature capability to 257 °F
The OPT4510-P2 Optical Sensor delivers reliable single-point dry-level detection using current-sink optical sensing in a compact M10×1 design. Featuring PTFE-insulated 9.8″ leads, it operates effectively up to 257 °F (125 °C) and 100 psi pressure conditions. CE-certified and backed by a one-year warranty, it ships in 55 business days. MadisonSensor recommends requesting a quote to confirm pricing and specifications and offers custom-engineered solutions to suit your specific application needs.
| Sensor Type | Optical |
|---|---|
| Orientation | Horizontal or Vertical |
| Mounting Type & Size | M10x1 |
| Switch Logic | Current Sink Dry |
| Electrical Ratings | 100mA Iout Max |
| Temperature (Max-Celsius) | 125 |
| Temperature (Max-Fahrenheit) | 257 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Electrical Termination | 9.8”, 24 AWG, PTFE insulated |
| Slosh Shield | No |
| Approvals | CE |
| Lead Time | 55 Business Days |
| Warranty | 1 Year |
