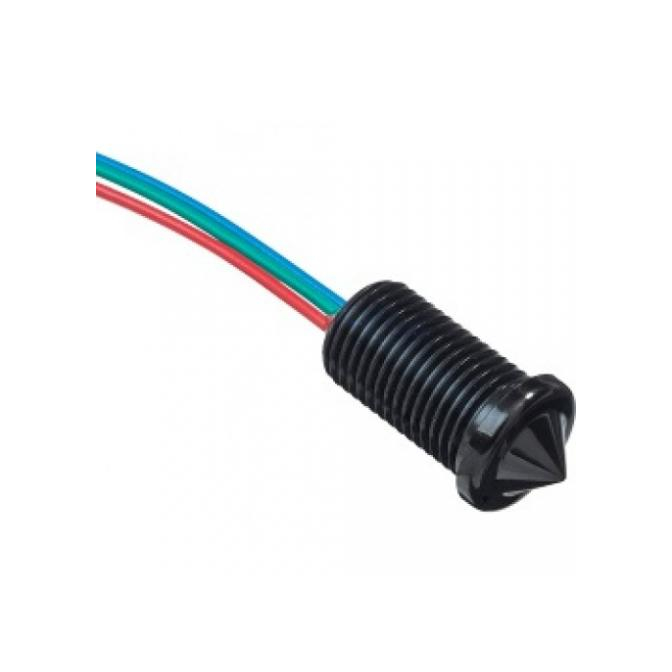

OPT4510-P1 Optical Sensor
Miniature optical sensor (M10×1) with wet current-sink logic and 257 °F resistance for versatile level detection.
Compact M10×1 optical design
Current-sink wet sensing logic
High-temperature tolerance to 257 °F
The OPT4510-P1 Optical Sensor offers precise single-point level detection using a current-sink wet optical mechanism housed in a compact M10×1 design. With PTFE-insulated termination and broad orientation flexibility, it operates reliably up to 257 °F (125 °C) and withstands pressure up to 100 psi. CE-certified and backed by a one-year warranty, this sensor has a lead time of approximately 55 business days. MadisonSensor recommends requesting a quote to confirm pricing and specifications and offers custom solutions to meet specialized application needs.
| Sensor Type | Optical |
|---|---|
| Orientation | Horizontal or Vertical |
| Mounting Type & Size | M10x1 |
| Switch Logic | Current Sink Wet |
| Electrical Ratings | 100mA Iout Max |
| Temperature (Max-Celsius) | 125 |
| Temperature (Max-Fahrenheit) | 257 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Electrical Termination | 9.8”, 24 AWG, PTFE insulated |
| Slosh Shield | No |
| Approvals | CE |
| Lead Time | 55 Business Days |
| Warranty | 1 Year |
