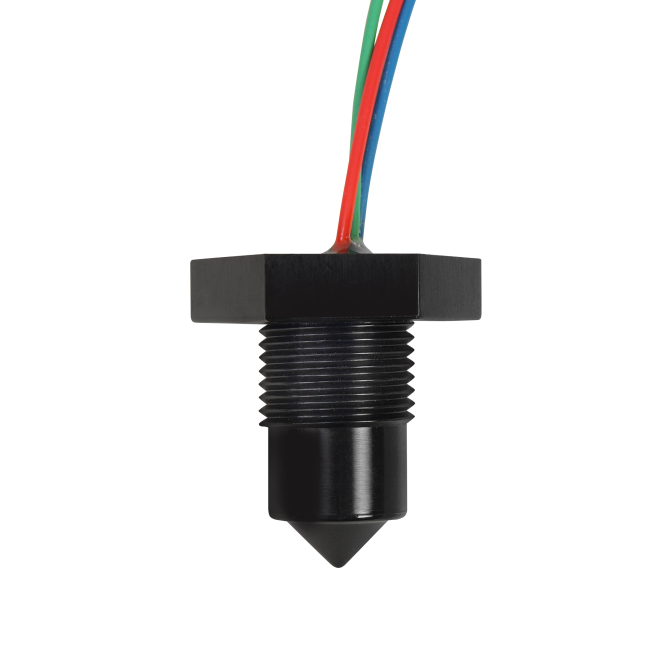

OPT4210-P1 Optical Sensor
$129.00
SKU:
OPT4210-P1
Lead Time1 Business Day
Compact optical liquid sensor with current-sink logic and high-temperature tolerance up to 257 °F.
Compact optical M12×1 design
Current-sink, wet sensing logic
High-temperature (257 °F) capability
- Buy 25 for $116.10 each and save 10%
- Buy 50 for $96.75 each and save 25%
The OPT4210-P1 Optical Sensor delivers single-point liquid detection via reliable current-sink optical sensing in a compact M12×1 package. With PTFE-insulated lead termination, it operates across a wide temperature range up to 257 °F and tolerates pressures up to 100 psi. Certified for CE compliance and backed by a one-year warranty, it ships quickly with a one-business-day lead time. MadisonSensor prefers quote requests to confirm price and specifications and offers tailored solutions to match your application requirements.
| Sensor Type | Optical |
|---|---|
| Orientation | Horizontal or Vertical |
| Mounting Type & Size | M12x1 |
| Switch Logic | Current Sink Wet |
| Electrical Ratings | 100mA Iout Max |
| Temperature (Max-Celsius) | 125 |
| Temperature (Max-Fahrenheit) | 257 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Electrical Termination | 9.8”, 24 AWG, PTFE insulated |
| Slosh Shield | No |
| Approvals | CE |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
