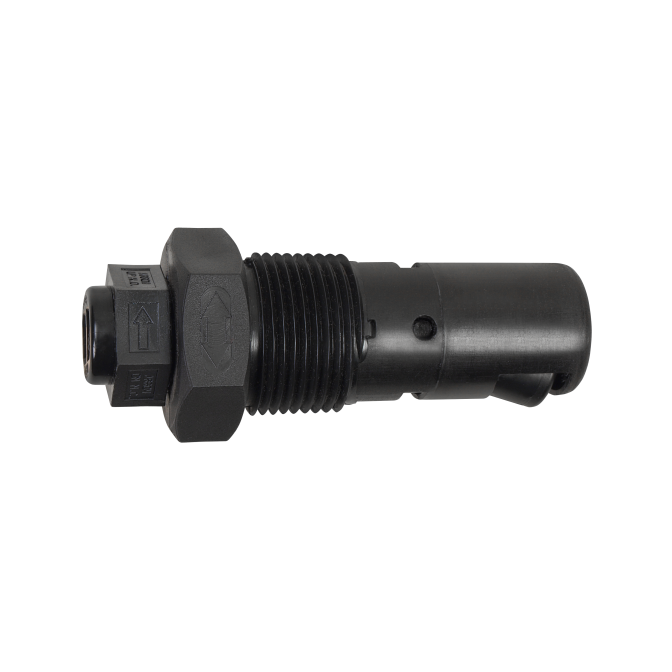

MS7725 Side Mount Float Switch with Slosh Shield
Durable PBT side-mount float switch with slosh shield and configurable logic.
Strong PBT construction
Side-mount 1/2″ NPT installation
Field-selectable NO/NC SPST logic
- Buy 10 for $78.85 each and save 5%
- Buy 25 for $74.70 each and save 10%
- Buy 100 for $70.55 each and save 15%
The MS7725 Side Mount Float Switch with Slosh Shield offers robust, side-wall level sensing with a durable PBT stem and float. Its quick-connect terminals and field-selectable switching logic (NO or NC) provide flexibility in system integration. Rated to 266 °F and 100 psi with a slosh shield to resist turbulence, it is ideal for automotive, fuel, and hydraulic service applications. Certified to CE, CSA, and cULus standards and backed by a 1-year warranty, MadisonSensor recommends requesting a quote for pricing and specification confirmation and offers custom solutions to meet unique requirements.
| Sensor Type | Float |
|---|---|
| Orientation | Horizontal |
| Mounting Type & Size | 1" NPT |
| Float Material | PBT |
| Stem Material | PBT |
| Switch Logic | Normally Open, Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 130 |
| Temperature (Max-Fahrenheit) | 266 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Minimum Media SG | 0.94 |
| Electrical Termination | 0.25” x 0.032” QC terminals |
| Float Diameter | 0.60" |
| Slosh Shield | Yes |
| Approvals | CE, CSA LR56150, cULus E54633 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
