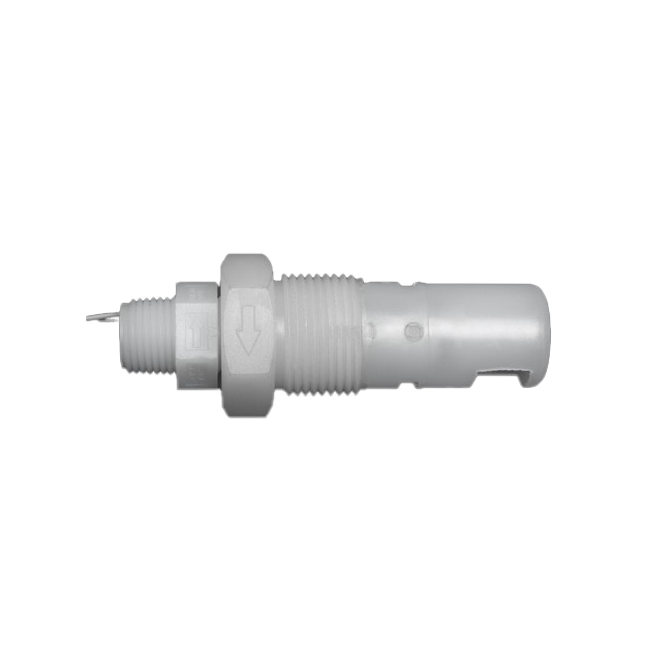

M9705 Side Mount Float Switch
Side-mount Kynar float switch with selectable logic and slosh shield for reliable level control in agitated environments.
High-purity Kynar construction
Compact 1" NPT horizontal mounting
Field-selectable SPST logic with slosh shield
- Buy 10 for $108.30 each and save 5%
- Buy 25 for $102.60 each and save 10%
- Buy 100 for $96.90 each and save 15%
The M9705 Side Mount Float Switch is a robust, chemically resistant level sensor featuring a Kynar stem and float, ideal for side-wall installation. With field-selectable SPST functionality (NO or NC) and an included slosh shield, it reliably handles turbulent or boiling liquid conditions up to 221 °F and 100 psi. Approved under CE, cULus, and NSF/ANSI/CAN 372 standards and backed by a one-year warranty, this switch delivers precision in medical, food, laboratory, and OEM applications. MadisonSensor prefers quote requests to confirm price and specifications and offers custom solutions tailored to your application requirements.
| Sensor Type | Float |
|---|---|
| Orientation | Horizontal |
| Mounting Type & Size | 1" NPT |
| Float Material | Kynar |
| Stem Material | Kynar |
| Switch Logic | Normally Open, Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Minimum Media SG | 1.13 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Slosh Shield | Yes |
| Approvals | CE, cULus E54633, NSF/ANSI/CAN 372 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
