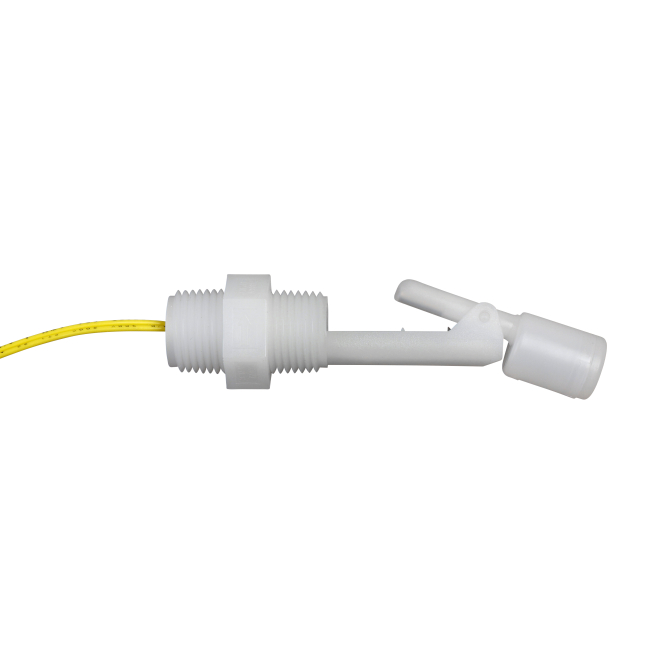

M9700 Side Mount Level Switch
High-purity Kynar side-mount float switch with toggleable logic and fast availability.
High-purity Kynar construction
Compact ½″ NPT horizontal mounting
Field-selectable SPST logic (NO/NC)
- Buy 10 for $45.60 each and save 5%
- Buy 25 for $43.20 each and save 10%
- Buy 100 for $40.80 each and save 15%
The M9700 Side Mount Level Switch brings reliable tank wall-mounted level control with its chemically resistant Kynar body and float. Field-selectable for normally open or closed SPST operation, it performs dependably up to 221 °F and 100 psi, making it ideal for food processing, laboratory, and medical equipment where purity and precision are crucial. With CE and NSF/ANSI 169 approvals and rapid 1-day lead times, it's trusted across sensitive environments. MadisonSensor prefers quote requests to verify price and specs and offers custom-configured solutions to meet specialized application requirements.
| Sensor Type | Float |
|---|---|
| Orientation | Horizontal |
| Mounting Type & Size | 1/2" NPT |
| Float Material | Kynar |
| Stem Material | Kynar |
| Switch Logic | Normally Open, Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Minimum Media SG | 1.13 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Float Diameter | 0.6" |
| Slosh Shield | No |
| Approvals | CE, cULus E54633, NSF/ANSI 169 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
