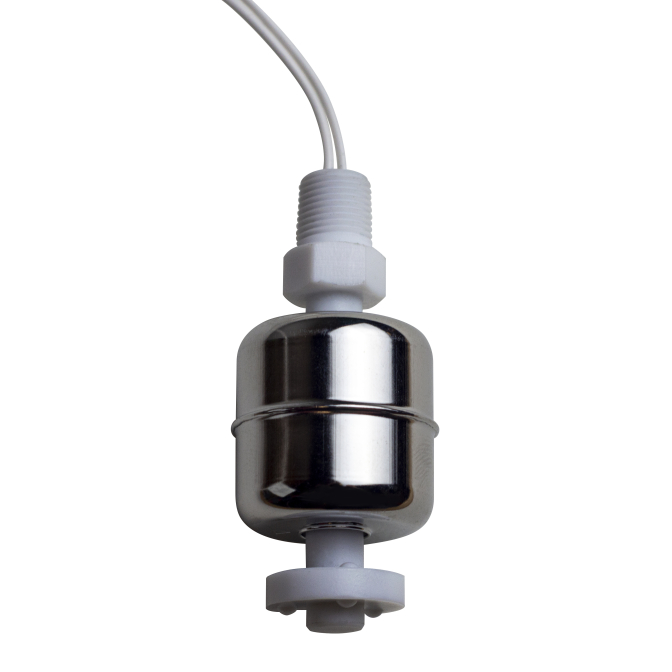

M9250 Single Point Level Switch
Compact stainless-steel float switch for high-temperature, corrosive fluid control.
Durable 316 stainless steel float
Compact 1/8″ NPT vertical mounting
High-temp 60 W SPST switch
- Buy 10 for $176.70 each and save 5%
- Buy 25 for $167.40 each and save 10%
- Buy 100 for $158.10 each and save 15%
The M9250 Single Point Level Switch is a rugged, miniature float sensor crafted for precision in challenging industrial environments. Its 316 stainless steel float and Teflon stem provide outstanding corrosion resistance, while the SPST switch handles high temperatures up to 392 °F and pressures up to 300 psi. Designed for OEMs and applications with sticky or aggressive fluids—such as inks, adhesives, or chemicals—this switch offers dependable performance and quick 1-day lead time. MadisonSensor prefers quote requests to confirm pricing and specifications and offers custom solutions tailored to your specific needs.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/8" NPT |
| Float Material | 316 Stainless Steel |
| Stem Material | Teflon |
| Switch Logic | Normally Closed |
| Switch Rating | 60 WATT SPST |
| Electrical Ratings | 240V AC, 0.40A; 120V AC, 0.50A; 120V DC, 0.20A; 24V DC, 0.50A |
| Temperature (Max-Celsius) | 200 |
| Temperature (Max-Fahrenheit) | 392 |
| Maximum Pressure (BAR) | 21 |
| Maximum Pressure (PSI) | 300 |
| Minimum Media SG | 0.91 |
| Electrical Termination | 24”, 22 AWG, MTW insulated |
| Float Diameter | 1.18" |
| Slosh Shield | No |
| Approvals | CE |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
